ADN4650BRWZ-RL7 - Analog Devices

Description: DGT ISO 5000VRMS 2CH LVDS 20SOIC

Download ADN4650BRWZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

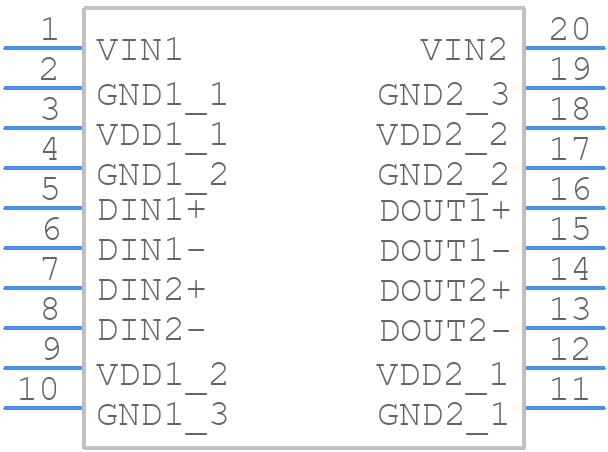

ADN4650BRWZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN4650BRWZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20-Lead Standard Small Outline Package [SOIC_W]ss
click to zoom
3D Models
ADN4650BRWZ-RL7 - Analog Devices - 3D model - Small Outline Packages - 20-Lead Standard Small Outline Package [SOIC_W]ss
click to zoom

ADN4650BRWZ-RL7 Details

  • Manufacturer Part Number:

    ADN4650BRWZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RW-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    ISOLATED LVDS BUFFER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADN4650BRWZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN4650BRWZ-RL7 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing the distance between the device and the load. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable 3.3V or 5V power supply, and decouple it with a 0.1uF capacitor to ground. The VEE pin should be connected to a quiet ground or a local ground plane. Avoid using a voltage regulator with high output impedance.
  • The ADN4650BRWZ-RL7 can support data rates up to 3.2 Gbps, but the actual data rate achievable depends on the specific application, PCB layout, and signal integrity. It's recommended to perform signal integrity simulations and testing to determine the maximum data rate for a specific design.
  • The ADN4650BRWZ-RL7 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
  • The recommended operating temperature range for the ADN4650BRWZ-RL7 is -40°C to 85°C. However, the device can operate up to 100°C with reduced performance and reliability. It's essential to ensure proper thermal management and heat dissipation in the system design.
