ADN4651BRSZ-RL7 - Analog Devices

Description: 5 kV rms, 600 Mbps Dual Tx and Rx Channel LVDS Isolator

Download ADN4651BRSZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

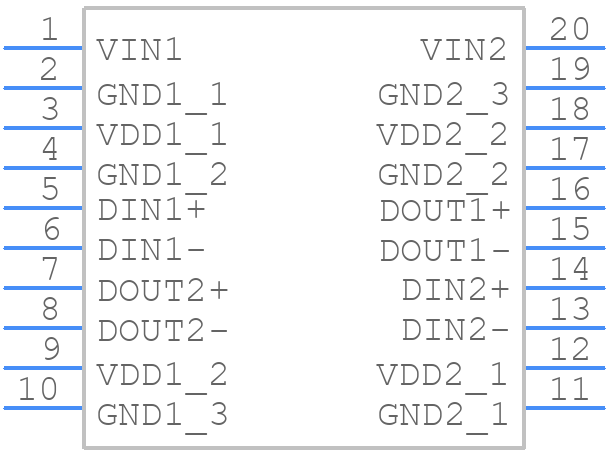

ADN4651BRSZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN4651BRSZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-20 (SSOP)
click to zoom
3D Models
ADN4651BRSZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RS-20 (SSOP)
click to zoom

ADN4651BRSZ-RL7 Details

  • Manufacturer Part Number:

    ADN4651BRSZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RS-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    ISOLATED LVDS BUFFER

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

ADN4651BRSZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN4651BRSZ-RL7 involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the load. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to decouple the VCC pin with a 0.1uF capacitor.
  • To ensure proper powering and decoupling of the ADN4651BRSZ-RL7, connect the VCC pin to a clean, low-noise power supply, and decouple it with a 0.1uF capacitor to ground. Additionally, use a low-ESR capacitor for the VCC pin and place it as close to the device as possible.
  • The ADN4651BRSZ-RL7 has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot issues with the ADN4651BRSZ-RL7, start by verifying the power supply voltage and ensuring it's within the recommended range. Check the input and output signals for any anomalies, and verify that the device is properly decoupled. If issues persist, consult the datasheet and application notes for guidance, or contact Analog Devices Inc. support for further assistance.
  • The ADN4651BRSZ-RL7 is a commercial-grade device, but it can be used in high-reliability or high-temperature applications with proper derating and qualification. Consult the datasheet and application notes for guidance, and contact Analog Devices Inc. support for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADN4651BRSZ-RL7 Overview

Use the download button to access the ADN4651BRSZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADN46, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
