ADN4651BRWZ - Analog Devices

Description: 5 kV rms, 600 Mbps Dual Tx and Rx Channel LVDS Isolator

Download ADN4651BRWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

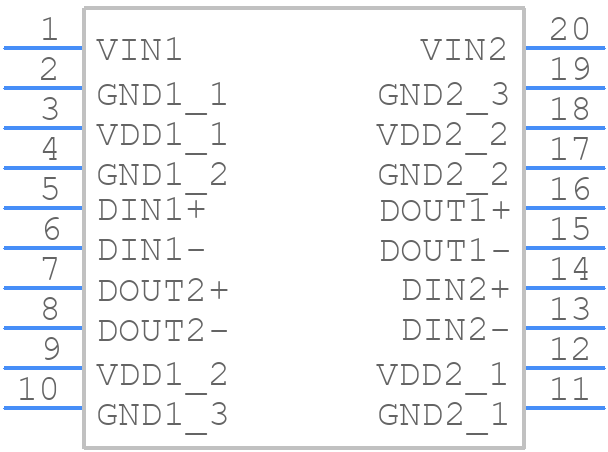

Symbol
ADN4651BRWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN4651BRWZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - ADN4651BRWZ
click to zoom
3D Models
ADN4651BRWZ - Analog Devices - 3D model - Small Outline Packages - ADN4651BRWZ
click to zoom

ADN4651BRWZ Details

  • Manufacturer Part Number:

    ADN4651BRWZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RW-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    ISOLATED LVDS BUFFER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADN4651BRWZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
  • Ensure the VCC pin is connected to a stable 3.3V or 5V power supply. The VEE pin should be connected to a quiet ground or a local ground plane. Use a 0.1uF decoupling capacitor between VCC and VEE.
  • The ADN4651BRWZ can support data rates up to 3.2 Gbps. However, the actual data rate may vary depending on the system design, PCB layout, and signal integrity.
  • Use an oscilloscope to measure the signal quality and jitter. Check the PCB layout for signal integrity issues. Verify the power supply and decoupling capacitors are properly connected. Consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, the ADN4651BRWZ is designed for differential signaling applications. It can be used in applications such as LVDS, LVPECL, or CML.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADN4651BRWZ Overview

Use the download button to access the ADN4651BRWZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADN46, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
