ADN4652BRSZ-RL7 - Analog Devices

Description: LVDS Buffer 600Mbps 0.45V 20-Pin SSOP T/R

Download ADN4652BRSZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

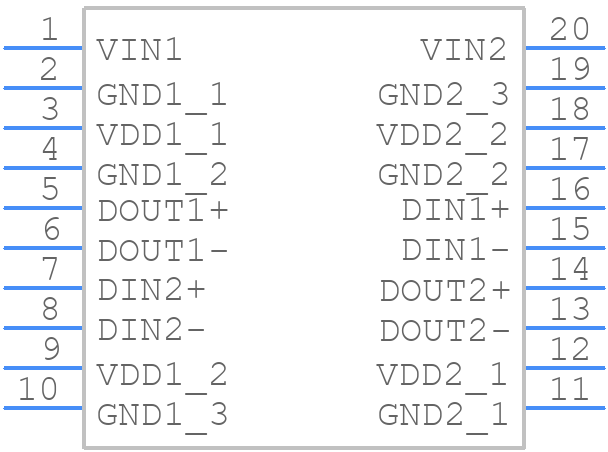

ADN4652BRSZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN4652BRSZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-20 (SSOP)
click to zoom
3D Models
ADN4652BRSZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RS-20 (SSOP)
click to zoom

ADN4652BRSZ-RL7 Details

  • Manufacturer Part Number:

    ADN4652BRSZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RS-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    ISOLATED LVDS BUFFER

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

ADN4652BRSZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN4652BRSZ-RL7 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device should be placed near the signal source to minimize noise and interference.
  • To ensure proper biasing, the ADN4652BRSZ-RL7 requires a stable voltage supply of 3.3V or 5V, depending on the application. The device also requires a bias current of 10mA to 20mA, which can be achieved using a voltage divider or a dedicated bias circuit. Additionally, the input common-mode voltage should be set to the midpoint of the supply voltage to ensure optimal performance.
  • The ADN4652BRSZ-RL7 is capable of supporting data rates up to 3.2 Gbps, making it suitable for high-speed applications such as HDMI, DisplayPort, and PCIe. However, the actual data rate achieved may depend on the specific application, PCB layout, and signal quality.
  • To troubleshoot common issues with the ADN4652BRSZ-RL7, start by checking the PCB layout and signal routing for any potential issues. Use oscilloscopes or signal analyzers to measure signal integrity and jitter. Check the power supply and biasing to ensure they are within the recommended specifications. Additionally, consult the datasheet and application notes for guidance on troubleshooting and optimizing the device's performance.
  • Yes, the ADN4652BRSZ-RL7 has a maximum junction temperature of 150°C, and it is recommended to keep the device temperature below 125°C for optimal performance and reliability. Thermal management techniques such as heat sinks, thermal vias, and airflow can be used to keep the device temperature within the recommended range.
