ADN4652BRWZ-RL7 - Analog Devices

Description: 5 kV/3.75 kV rms, 600 Mbps Dual Channel LVDS Isolator

Download ADN4652BRWZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

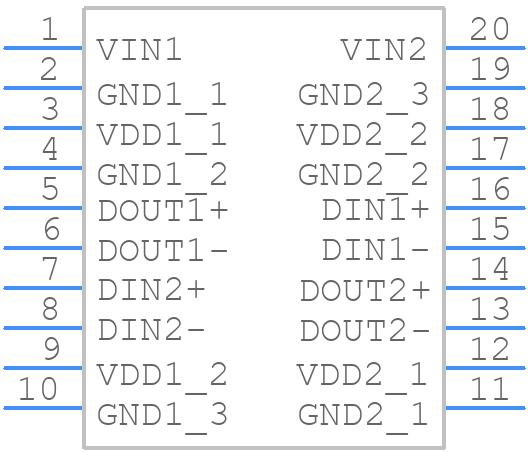

Symbol
ADN4652BRWZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN4652BRWZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20-Lead Standard Small Outline Package [SOIC_W] Wide Body (RW-20)
click to zoom
3D Models
ADN4652BRWZ-RL7 - Analog Devices - 3D model - Small Outline Packages - 20-Lead Standard Small Outline Package [SOIC_W] Wide Body (RW-20)
click to zoom

ADN4652BRWZ-RL7 Details

  • Manufacturer Part Number:

    ADN4652BRWZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RW-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-04-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    ISOLATED LVDS BUFFER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADN4652BRWZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN4652BRWZ-RL7 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure proper biasing, follow the recommended biasing scheme in the datasheet. Typically, this involves connecting the VCC pin to a stable voltage source (e.g., 3.3V or 5V), and the VEE pin to a stable voltage source (e.g., GND or -5V). The bias voltage should be within the recommended range, and the input common-mode voltage should be within the specified range.
  • The ADN4652BRWZ-RL7 has an operating temperature range of -40°C to +125°C. However, it's essential to note that the device's performance may degrade at extreme temperatures, and the maximum junction temperature should not exceed 150°C.
  • Yes, the ADN4652BRWZ-RL7 is designed for high-speed applications, with a bandwidth of up to 3.2 GHz. However, it's crucial to ensure that the PCB layout, signal routing, and termination are optimized for high-speed signals to minimize signal degradation and reflections.
  • The ADN4652BRWZ-RL7 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding wrist straps, and using ESD-protected workstations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADN4652BRWZ-RL7 Overview

Use the download button to access the ADN4652BRWZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADN46, or try a keyword search, such as Other Interface ICs
