ADN4670BSTZ - Analog Devices

Description: LVDS Interface IC 1:10 LVDS CLOCK DRIVER IC.

Download ADN4670BSTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

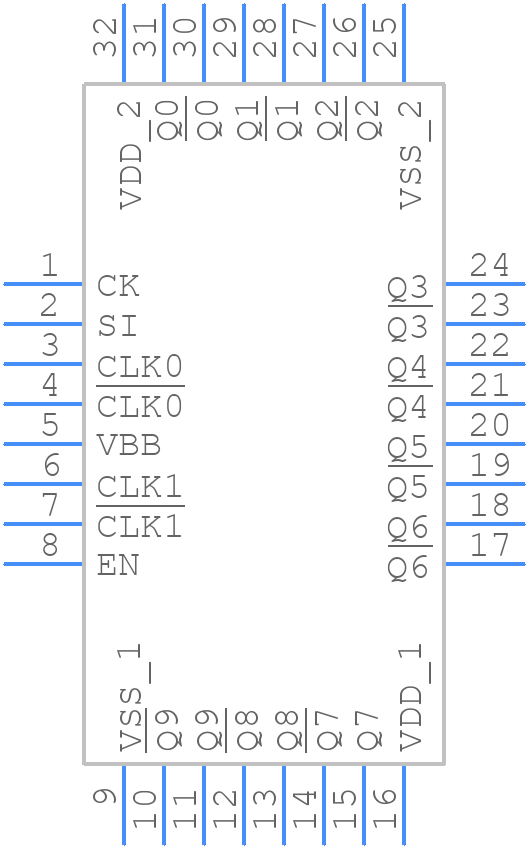

ADN4670BSTZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN4670BSTZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - lqfp---
click to zoom
3D Models
ADN4670BSTZ - Analog Devices - 3D model - Quad Flat Packages - lqfp---
click to zoom

ADN4670BSTZ Details

  • Manufacturer Part Number:

    ADN4670BSTZ

  • Source Url Status Check Date:

    2013-05-01 14:56:44.297

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    ST-32-2

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Family:

    4000/14000/40000

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of True Outputs:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    3 ns

  • Propagation Delay (tpd):

    3 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • fmax-Min:

    100 MHz

ADN4670BSTZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN4670BSTZ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the ADN4670BSTZ evaluation board layout for a reference design.
  • The ADN4670BSTZ requires proper termination to maintain signal integrity. Use a 50Ω termination resistor at the receiver end, and ensure the transmission line is impedance-matched to 50Ω. Additionally, use a serial resistor-capacitor (RC) filter at the transmitter end to reduce reflections and ringing.
  • The maximum cable length supported by the ADN4670BSTZ depends on the signal frequency, cable type, and termination. As a general guideline, the device can support cable lengths up to 10 meters at 1 Gbps, 5 meters at 2 Gbps, and 2 meters at 3 Gbps. However, it's recommended to perform signal integrity simulations and testing to determine the maximum cable length for a specific application.
  • The ADN4670BSTZ can be configured for different data rates by adjusting the internal clock frequency and the transmitter output amplitude. Refer to the datasheet for specific settings and equations to calculate the required values. Additionally, the device can be programmed using the SPI interface to adjust the transmit amplitude, receive threshold, and other parameters.
  • The power consumption of the ADN4670BSTZ depends on the operating frequency, data rate, and output amplitude. Typical power consumption is around 150 mW at 1 Gbps. To reduce power consumption, consider reducing the output amplitude, operating frequency, or using the device's low-power mode. Additionally, ensure proper PCB design and layout to minimize power losses.
