ADN4693E-1BCPZ - Analog Devices

Description: LVDS Interface IC MLVDS Xcvr,FD,200M Type 1 Rx,EnhancedESD

Download ADN4693E-1BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

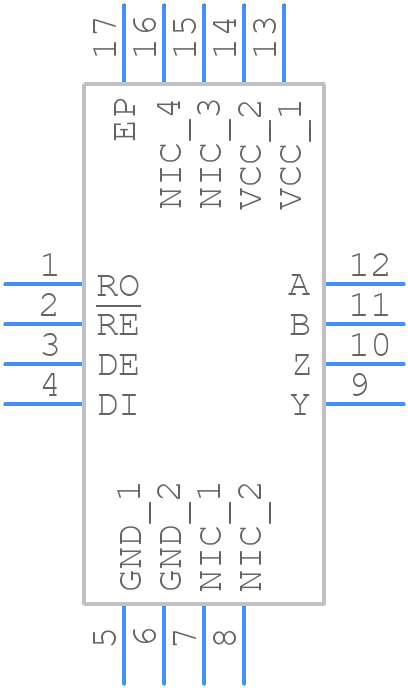

ADN4693E-1BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN4693E-1BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Lead LFCSP (4mm x 4mm)
click to zoom
3D Models
ADN4693E-1BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - 16-Lead LFCSP (4mm x 4mm)
click to zoom

ADN4693E-1BCPZ Details

  • Manufacturer Part Number:

    ADN4693E-1BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-17

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00001 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-899; TIA-899

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.48 V

  • Output Low Current-Max:

    0.008 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Receive Delay-Max:

    6 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    24 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Transmit Delay-Max:

    2.4 ns

  • Width:

    4 mm

ADN4693E-1BCPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN4693E-1BCPZ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device should be placed near the signal source to minimize noise and interference.
  • Proper termination of the ADN4693E-1BCPZ involves using a 50Ω termination resistor at the output of the device, and a 50Ω transmission line impedance for the PCB traces. The termination resistor should be placed as close to the device as possible, and the transmission line impedance should be maintained throughout the signal path.
  • The maximum cable length that can be driven by the ADN4693E-1BCPZ depends on the signal frequency, cable type, and termination. As a general rule, the device can drive up to 10 meters of cable at frequencies up to 100 MHz, and up to 5 meters of cable at frequencies up to 500 MHz. However, it's recommended to consult the datasheet and perform simulations to determine the maximum cable length for a specific application.
  • The ADN4693E-1BCPZ requires a specific power sequencing and supply voltage ramp-up to ensure proper operation. The recommended power-up sequence is to apply the VCC supply voltage first, followed by the VEE supply voltage. The supply voltage ramp-up should be slow and monotonic, with a recommended rate of 1-10 mV/μs. Additionally, it's recommended to use a soft-start circuit to limit the inrush current during power-up.
  • The ADN4693E-1BCPZ has a maximum junction temperature of 150°C, and it's recommended to keep the device temperature below 125°C for optimal performance and reliability. Thermal management considerations include using a heat sink, thermal vias, and thermal pads on the PCB, as well as ensuring good airflow around the device. The device's thermal resistance (θJA) is 30°C/W, and the thermal resistance (θJC) is 10°C/W.
