ADN8833ACBZ-R7 - Analog Devices

Description: Ultracompact, 1 A Thermoelectric Cooler (TEC) Driver for Digital Control Systems

Download ADN8833ACBZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

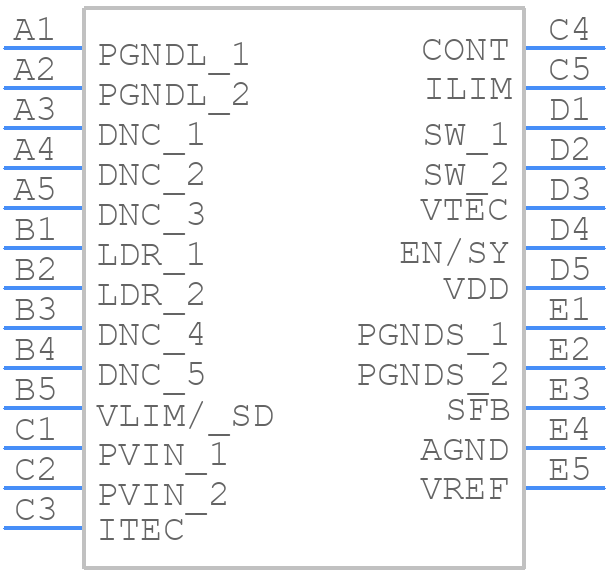

ADN8833ACBZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN8833ACBZ-R7 - Analog Devices PCB footprint - BGA - BGA - bga-25
click to zoom
3D Models
ADN8833ACBZ-R7 - Analog Devices - 3D model - BGA - bga-25
click to zoom

ADN8833ACBZ-R7 Details

  • Manufacturer Part Number:

    ADN8833ACBZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    25

  • Manufacturer Package Code:

    CB-25-7

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-PBGA-B25

  • JESD-609 Code:

    e1

  • Length:

    2.54 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.66 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.54 mm

ADN8833ACBZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling.
  • Ensure that the output capacitor is properly sized and placed close to the device. Also, make sure the input voltage is within the recommended range and the device is operated within the specified temperature range.
  • The maximum input voltage is 5.5V, but it's recommended to operate the device within the specified input voltage range of 2.7V to 5.5V for optimal performance and reliability.
  • The ADN8833ACBZ-R7 is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. Ensure that the device is operated within the specified temperature range for optimal performance.
  • Check the input voltage, output voltage, and output current to ensure they are within the specified ranges. Also, verify that the device is properly soldered and the PCB layout is correct. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADN8833ACBZ-R7 Overview

Use the download button to access the ADN8833ACBZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADN88, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
