ADN8833ACPZ-R2 - Analog Devices

Description: Ultracompact, 1 A Thermoelectric Cooler (TEC) Driver for Digital Control Systems , 2.7V ~ 5.5V , 2.1mA , -40°C ~ 125°C

Download ADN8833ACPZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

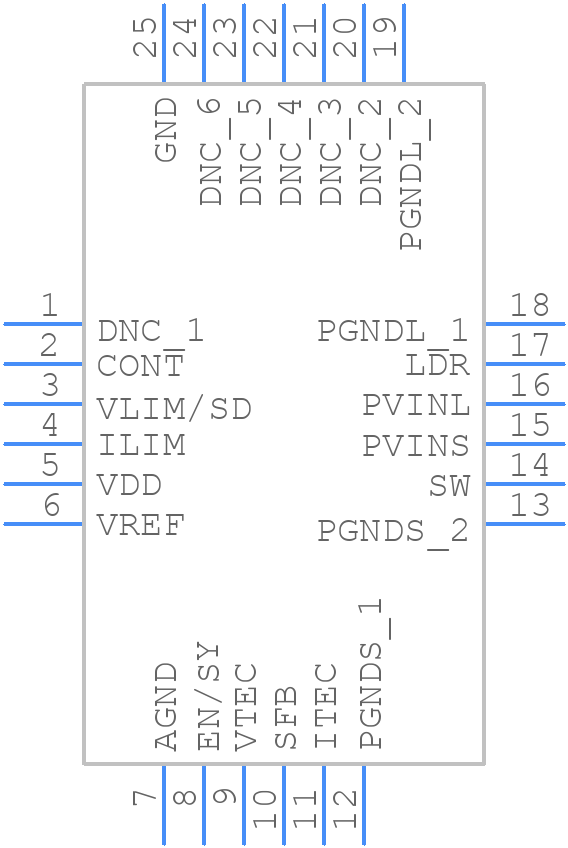

ADN8833ACPZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN8833ACPZ-R2 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-15
click to zoom
3D Models
ADN8833ACPZ-R2 - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-15
click to zoom

ADN8833ACPZ-R2 Details

  • Manufacturer Part Number:

    ADN8833ACPZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-7

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADN8833ACPZ-R2 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling.
  • The ADN8833ACPZ-R2 requires a bias voltage of 2.5V to 5.5V. Ensure the bias voltage is stable and noise-free, and that the input voltage is within the recommended range.
  • The ADN8833ACPZ-R2 can handle up to 100mA of output current. However, it's recommended to limit the output current to 50mA for optimal performance and reliability.
  • Use external protection devices such as TVS diodes and current-limiting resistors to protect the ADN8833ACPZ-R2 from overvoltage and overcurrent conditions.
  • The ADN8833ACPZ-R2 has a thermal pad on the bottom of the package. Ensure good thermal contact between the thermal pad and a heat sink or a thermal via to the PCB ground plane.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADN8833ACPZ-R2 Overview

Use the download button to access the ADN8833ACPZ-R2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADN88, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
