ADN8834ACBZ-R7 - Analog Devices

Description: Power Management Specialized - PMIC 1.5A TEC Driver

Download ADN8834ACBZ-R7 Model

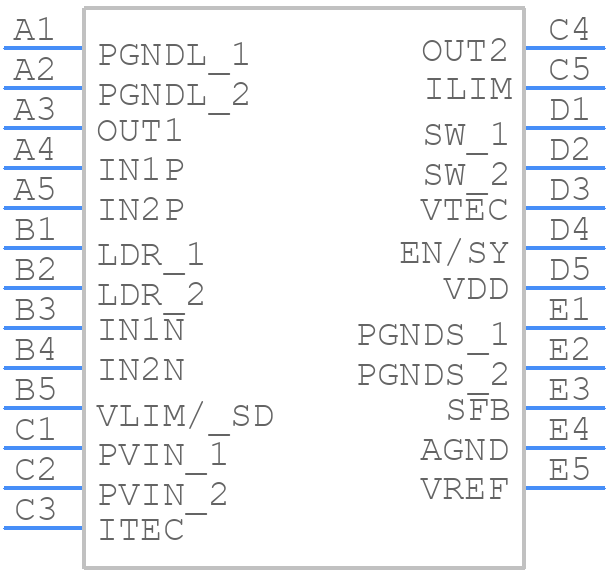

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADN8834ACBZ-R7 - Analog Devices PCB footprint - BGA - BGA - e [WLCSP] (CB-25-7)
click to zoom
3D Models
ADN8834ACBZ-R7 - Analog Devices  - 3D model - BGA - e [WLCSP] (CB-25-7)
click to zoom

ADN8834ACBZ-R7 Details

  • Manufacturer Part Number:

    ADN8834ACBZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-25

  • Pin Count:

    25

  • Manufacturer Package Code:

    CB-25-7

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PBGA-B25

  • JESD-609 Code:

    e1

  • Length:

    2.54 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.66 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.54 mm

ADN8834ACBZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling.
  • The ADN8834ACBZ-R7 requires a bias voltage of 2.5V to 5.5V. Ensure the bias voltage is stable and noise-free, and that the input voltage is within the recommended range.
  • The ADN8834ACBZ-R7 can handle up to 1A of continuous current. However, it's recommended to derate the current handling capability based on the ambient temperature and PCB design.
  • Use external protection devices such as TVS diodes and current limiting resistors to protect the ADN8834ACBZ-R7 from overvoltage and overcurrent conditions.
  • Use a heat sink or a thermal pad to dissipate heat generated by the ADN8834ACBZ-R7. Ensure good airflow and avoid blocking airflow around the device.
