ADN8834ACPZ-R7 - Analog Devices

Description: Power Management Specialised - PMIC 1.5A TEC Driver Ultracompact, 1.5 A Thermoelectric Cooler (TEC) Controller

Download ADN8834ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

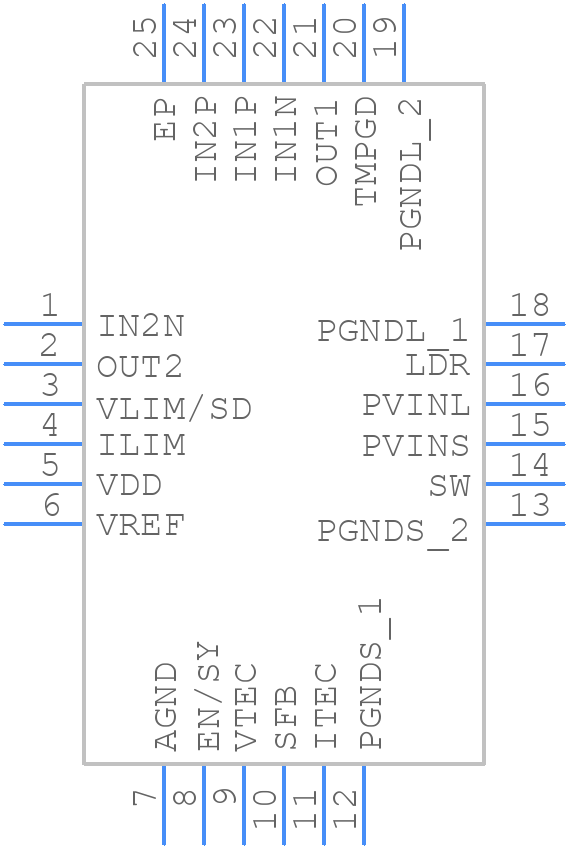

ADN8834ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN8834ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ADN8834ACPZ-R7-LFCSP
click to zoom
3D Models
ADN8834ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - ADN8834ACPZ-R7-LFCSP
click to zoom

ADN8834ACPZ-R7 Details

  • Manufacturer Part Number:

    ADN8834ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-15

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADN8834ACPZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and coupling.
  • Use a low-ESR capacitor (e.g., 10uF) between VCC and GND, and a 0.1uF capacitor between VCC and AVCC. Ensure the power supply is clean and regulated, and add a 10uF capacitor between the output and GND for filtering.
  • The maximum output current of the ADN8834ACPZ-R7 is 100mA per channel. However, it's recommended to limit the output current to 50mA per channel for optimal performance and reliability.
  • Use the gain setting resistors (Rf and Rg) to set the desired gain. The gain can be calculated using the formula: Gain = (Rf/Rg) + 1. Ensure the resistors are 1% tolerance or better for accurate gain setting.
  • The recommended operating temperature range for the ADN8834ACPZ-R7 is -40°C to +125°C. However, the device can operate up to 150°C with reduced performance and reliability.
