ADN8834WACPZ-R7 - Analog Devices

Description: Power Management Specialised - PMIC ADN8834WACPZ

Download ADN8834WACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

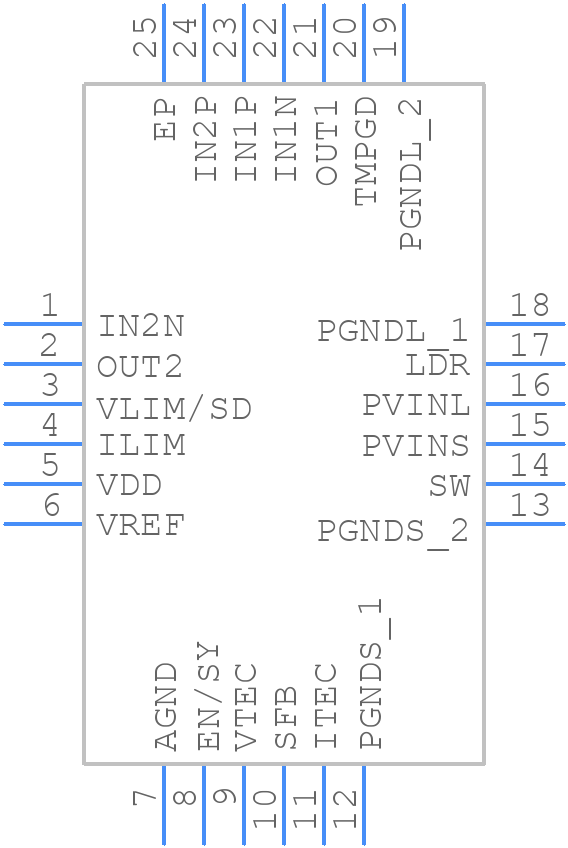

ADN8834WACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN8834WACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-24-15)
click to zoom
3D Models
ADN8834WACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-24-15)
click to zoom

ADN8834WACPZ-R7 Details

  • Manufacturer Part Number:

    ADN8834WACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-15

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADN8834WACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN8834WACPZ-R7 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure proper powering and decoupling of the ADN8834WACPZ-R7, use a high-quality power supply with low noise and ripple. Decouple the device with a 10uF ceramic capacitor and a 100nF ceramic capacitor in parallel, placed as close as possible to the device. Additionally, use a 1uF ceramic capacitor to decouple the VCC pin.
  • The ADN8834WACPZ-R7 has an operating temperature range of -40°C to +125°C. However, it's essential to note that the device's performance may degrade at extreme temperatures, and the maximum junction temperature should not exceed 150°C.
  • To troubleshoot common issues with the ADN8834WACPZ-R7, start by checking the PCB layout and ensuring that it follows the recommended guidelines. Verify that the device is properly powered and decoupled. Check for any signs of overheating, and ensure that the input and output signals are within the recommended specifications. Use an oscilloscope to analyze the signals and identify any anomalies. If the issue persists, consult the datasheet and application notes or contact Analog Devices' support team for further assistance.
  • The ADN8834WACPZ-R7 is a high-reliability device, but it's essential to follow the recommended design and layout guidelines to ensure its reliability in safety-critical applications. Additionally, consult the datasheet and application notes for specific guidance on using the device in high-reliability or safety-critical applications. It's also recommended to consult with Analog Devices' support team and perform thorough testing and validation to ensure the device meets the required safety and reliability standards.
