Broadcom provides a recommended PCB layout and design guidelines in the ADNS-7530 application note, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The ADNS-7530 requires calibration to optimize its performance. Calibration involves adjusting the sensor's gain and offset settings to match the specific optical and mechanical characteristics of the mouse or navigation device. Broadcom provides a calibration procedure in the ADNS-7530 datasheet and application note.
The ADNS-7530 is specified to operate over a temperature range of -20°C to 70°C, but it can be extended to -40°C to 85°C with proper design and thermal management.
Troubleshooting the ADNS-7530 involves checking the sensor's power supply, clock, and data signals, as well as the optical and mechanical components of the mouse or navigation device. Broadcom provides troubleshooting guidelines in the ADNS-7530 application note and datasheet.
Yes, the ADNS-7530 can be used with a custom optical navigation system, but it requires careful design and optimization of the optical and mechanical components to ensure optimal performance. Broadcom provides guidelines for custom optical navigation system design in the ADNS-7530 application note.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADNS-7530 Overview

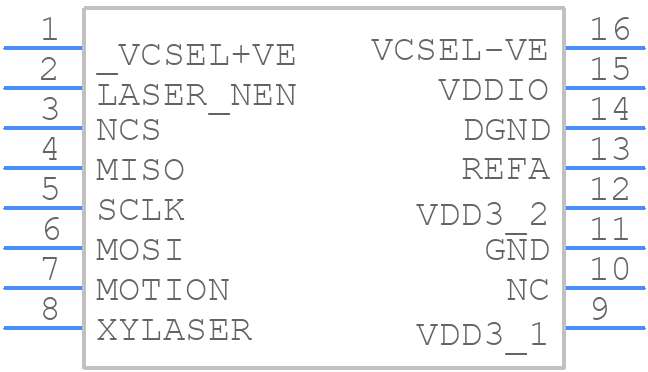

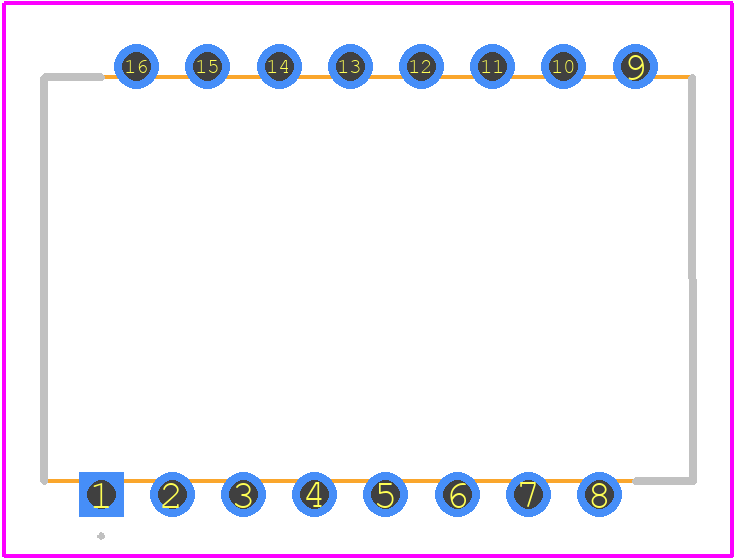

Use the download button to access the ADNS-7530 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADNS-,
or try a keyword search, such as Other Signal Circuits
