Part Image

ADP-2-10-75M+ - Mini-Circuits

Description: Signal Conditioning PWR SPLTR CMBD / SURF MT/ RoHS

Download ADP-2-10-75M+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

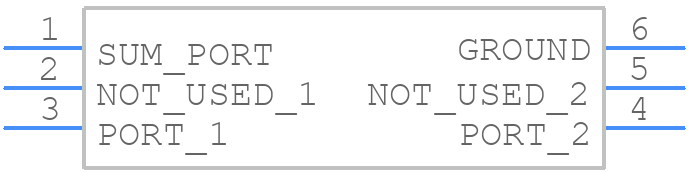

ADP-2-10-75M+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
ADP-2-10-75M+ - Mini-Circuits PCB footprint - Other - Other - ADP-2-10-75M+-1
click to zoom
3D Models
ADP-2-10-75M+ - Mini-Circuits - 3D model - Other - ADP-2-10-75M+-1
click to zoom

ADP-2-10-75M+ Details

  • Manufacturer Part Number:

    ADP-2-10-75M+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE CD636, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.3

  • Additional Feature:

    ISOLATION-MIN (DB):18

  • Characteristic Impedance:

    75 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    1.6 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    1200 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    COMBINER

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.24

ADP-2-10-75M+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The ADP-2-10-75M+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. You can also use simulation software like ADS or AWR to optimize the matching network.
  • The maximum power handling of the ADP-2-10-75M+ is 1W. Exceeding this power limit can cause damage to the device. Make sure to derate the power handling based on the operating frequency and temperature.
  • Yes, the ADP-2-10-75M+ is designed for high-reliability applications and is suitable for use in space-constrained environments. However, it's essential to follow proper assembly and soldering techniques to ensure reliable operation.
  • Common issues with the ADP-2-10-75M+ include poor return loss, low gain, or high noise figure. To troubleshoot, check the PCB layout, impedance matching, and power supply connections. Use a vector network analyzer or a spectrum analyzer to measure the device's performance.
