ADP-2-20+ - Mini-Circuits

Description: Signal Conditioning 2 Ways Core & Wire Power Splitter, 20 - 2000 MHz, 50

Download ADP-2-20+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

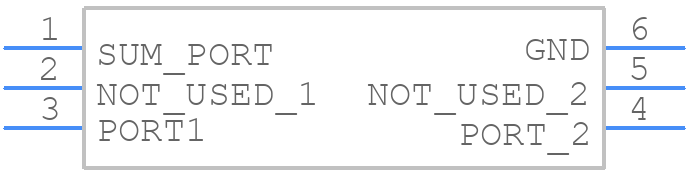

ADP-2-20+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
ADP-2-20+ - Mini-Circuits PCB footprint - Other - Other - ADP-2-20+-1
click to zoom
3D Models
ADP-2-20+ - Mini-Circuits - 3D model - Other - ADP-2-20+-1
click to zoom

ADP-2-20+ Details

  • Manufacturer Part Number:

    ADP-2-20+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    1.5 dB

  • Isolation-Min:

    15 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    2000 MHz

  • Operating Frequency-Min:

    20 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN OVER NICKEL

ADP-2-20+ Frequently Asked Questions (FAQs)

  • The maximum power handling of the ADP-2-20+ is 2 watts. Exceeding this power limit can cause damage to the device.
  • Yes, the ADP-2-20+ can be used as a splitter or combiner, but it's primarily designed as a 2-way, 0° power divider. For splitter or combiner applications, ensure the input power is within the recommended range and the output ports are properly terminated.
  • The ADP-2-20+ has a 50 ohm input and output impedance. To impedance match, ensure your system's impedance is also 50 ohms. If not, use impedance matching networks or transformers to achieve optimal power transfer.
  • The operating temperature range of the ADP-2-20+ is -40°C to +85°C. Operating outside this range may affect the device's performance and reliability.
  • Yes, the ADP-2-20+ is designed for high-reliability applications and is suitable for use in space-constrained systems. However, ensure proper thermal management and follow recommended assembly and handling procedures.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADP-2-20+ Overview

Use the download button to access the ADP-2-20+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP-2, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits
