ADP-2-9+ - Mini-Circuits

Description: RF Power Divider 200 MHz ~ 900 MHz Isolation (Min) 20dB, 2° Imbalance (Max) 6-SMD, Flat Leads

Download ADP-2-9+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

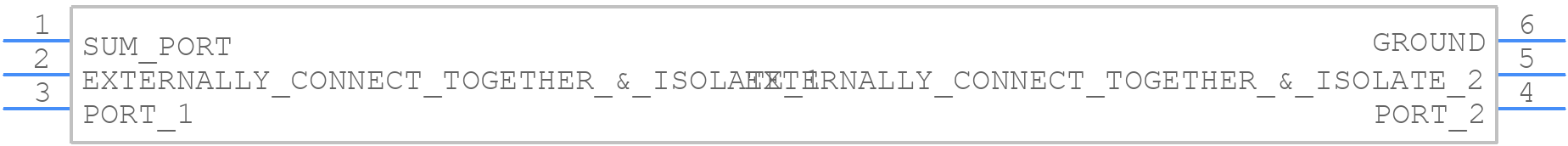

ADP-2-9+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
ADP-2-9+ - Mini-Circuits PCB footprint - Other - Other - CD636_2023-3
click to zoom
3D Models
ADP-2-9+ - Mini-Circuits - 3D model - Other - CD636_2023-3
click to zoom

ADP-2-9+ Details

  • Manufacturer Part Number:

    ADP-2-9+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.2

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    26.99 dBm

  • Insertion Loss-Max:

    0.8 dB

  • Isolation-Min:

    20 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Max:

    900 MHz

  • Operating Frequency-Min:

    200 MHz

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN OVER NICKEL

ADP-2-9+ Frequently Asked Questions (FAQs)

  • The maximum power handling of the ADP-2-9+ is 1 watt. Exceeding this power limit can cause damage to the device.
  • The ADP-2-9+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network with capacitors and inductors to match the impedance of your system to 50 ohms.
  • The operating temperature range of the ADP-2-9+ is -40°C to +85°C. Operating outside this range can affect the device's performance and reliability.
  • The ADP-2-9+ is a commercial-grade device and may not meet the requirements for high-reliability or space applications. For such applications, consider using a radiation-hardened or high-reliability version of the device.
  • To troubleshoot issues with the ADP-2-9+, check the power supply voltage, input/output impedance matching, and signal levels. Use a spectrum analyzer or oscilloscope to measure the signal quality and frequency response.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADP-2-9+ Overview

Use the download button to access the ADP-2-9+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP-2, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
