ADP0604 - TE Connectivity

Description: DIP Switch, Gold Contact Plating, Black, Polyphenylene Sulfide (PPS), 6 Switch, -30 – 85 °C, Piano (Side Actuated), 1 A Contact Rating, Alcoswitch DIP

Download ADP0604 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADP0604 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

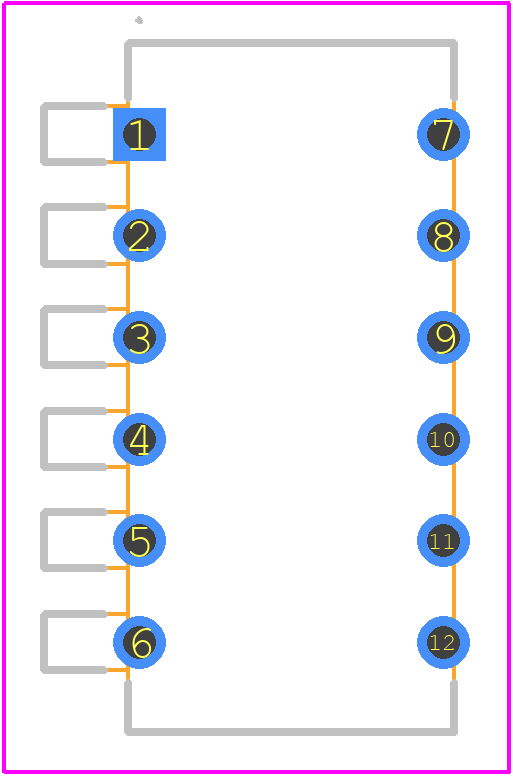

ADP0604 - TE Connectivity PCB footprint - Other - Other - ADP0604-8
click to zoom
3D Models
ADP0604 - TE Connectivity - 3D model - Other - ADP0604-8
click to zoom

ADP0604 Details

  • Manufacturer Part Number:

    ADP0604

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.6

  • Actuator Color:

    WHITE

  • Actuator Length:

    0.083 inch

  • Actuator Material:

    POLYAMIDE6T

  • Actuator Type:

    PIANO TYPE

  • Additional Feature:

    APPROVAL: UL

  • Body Breadth:

    8.15 mm

  • Body Color:

    BLACK

  • Body Height:

    6 mm

  • Body Length or Diameter:

    17.22 mm

  • Center Contact Material:

    COPPER ALLOY

  • Center Contact Plating:

    GOLD OVER NICKEL

  • Contact Current(AC)-Max:

    1 A

  • Contact Current(DC)-Max:

    0.1 A

  • Contact (DC) Max Rating R Load:

    0.1A@24VDC

  • Contact Resistance:

    0.05 mΩ

  • Contact Voltage(DC)-Max:

    24 V

  • Dielectric Withstand Volts:

    300VAC V

  • Electrical Life:

    1000 Cycle(s)

  • End Contact Material:

    COPPER ALLOY

  • End Contact Plating:

    GOLD OVER NICKEL

  • Housing Material:

    POLYPHENYLENE SULPHIDE

  • Insulation Resistance:

    100000000 Ω

  • Insulator Material:

    POLYPHENYLENE SULPHIDE

  • Mounting Feature:

    THROUGH HOLE-RIGHT ANGLE

  • Number of Positions:

    6

  • Number of Switch Sections:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • PCB Hole Count:

    12

  • Packing Method:

    BOX; TUBE

  • Surface Mount:

    NO

  • Switch Function:

    SPST

  • Switch Type:

    PIANO DIP SWITCH

  • Terminal Length:

    0.157 inch

  • Terminal Material:

    COPPER ALLOY

  • Termination Type:

    SOLDER

ADP0604 Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to have a solid copper plane on the bottom layer of the PCB, connected to the thermal pad of the ADP0604. This helps to dissipate heat efficiently.
  • To ensure reliable operation over the full operating temperature range, it is recommended to follow proper PCB design and layout guidelines, use a suitable thermal interface material, and ensure that the device is properly soldered and mounted.
  • Exceeding the maximum junction temperature can lead to reduced reliability, decreased performance, and potentially even device failure. It is essential to ensure that the device operates within the recommended temperature range to maintain its performance and lifespan.
  • While the ADP0604 is designed to operate in a variety of environments, it is not recommended for use in high-humidity environments without proper protection. Moisture can affect the device's performance and reliability. If operation in a high-humidity environment is necessary, consider using a conformal coating or other protection methods.
  • The recommended storage condition for the ADP0604 is in a dry, cool place, away from direct sunlight and moisture. The device should be stored in its original packaging or in a similar protective environment to prevent damage.
