ADP1043AACPZ-R7 - Analog Devices

Description: Digital Controller for Isolated Power Supply Applications,−0.3 V to +0.3 V,2.5 V,3.5 kV −65°C to +150°C

Download ADP1043AACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

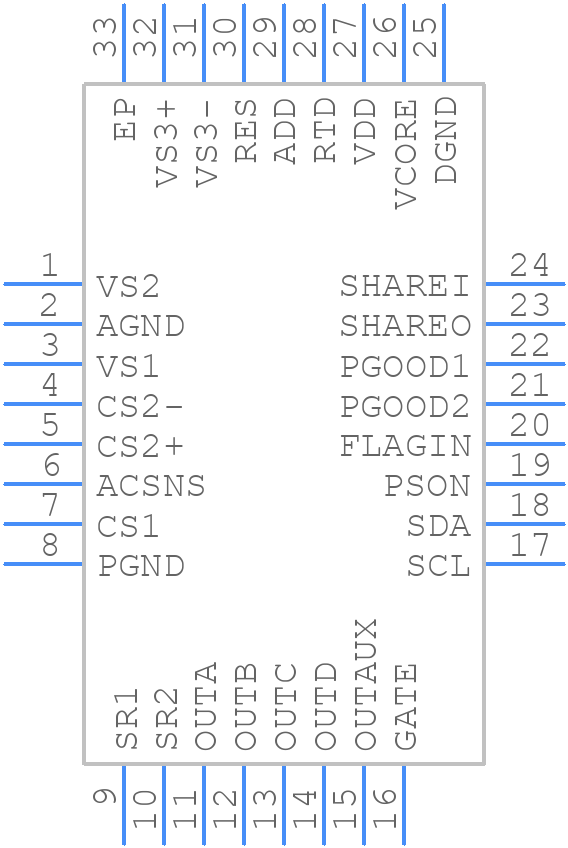

ADP1043AACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1043AACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-7
click to zoom
3D Models
ADP1043AACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-7
click to zoom

ADP1043AACPZ-R7 Details

  • Manufacturer Part Number:

    ADP1043AACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    3.6 V

  • Input Voltage-Min:

    3.1 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    210 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADP1043AACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP1043AACPZ-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input voltage and to keep the noise-sensitive analog signals away from the digital signals.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input voltage with a capacitor and to use a resistor in series with the output capacitor to dampen any oscillations.
  • The ADP1043AACPZ-R7 is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. It's recommended to follow the thermal design guidelines in the datasheet and to ensure that the device is properly heat-sinked to maintain a safe operating temperature.
  • Yes, the ADP1043AACPZ-R7 is qualified for use in high-reliability and automotive applications. It's manufactured using a robust process and is tested to ensure high reliability and performance. However, it's recommended to follow the specific requirements and guidelines for the target application, such as AEC-Q100 for automotive applications.
  • To troubleshoot issues with the ADP1043AACPZ-R7, start by verifying that the input voltage and current are within the recommended specifications. Check the output voltage and current to ensure they are within the expected range. Use an oscilloscope to check for any oscillations or noise on the output. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines and contact Analog Devices support for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADP1043AACPZ-R7 Overview

Use the download button to access the ADP1043AACPZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP10, or try a keyword search, such as Switching Regulator or Controllers
