ADP1071-1ARWZ - Analog Devices

Description: Switching Controllers Isolated Flyback controller w/Light load

Download ADP1071-1ARWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

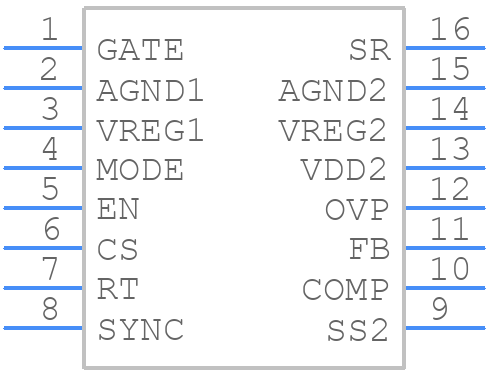

ADP1071-1ARWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1071-1ARWZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-16 (SOIC)
click to zoom
3D Models
ADP1071-1ARWZ - Analog Devices - 3D model - Small Outline Packages - RW-16 (SOIC)
click to zoom

ADP1071-1ARWZ Details

  • Manufacturer Part Number:

    ADP1071-1ARWZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-09-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    12.5 V

  • Input Voltage-Min:

    4.7 V

  • Input Voltage-Nom:

    8 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    660 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADP1071-1ARWZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP1071-1ARWZ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input voltage and to keep the noise-sensitive analog signals away from the switching node.
  • To ensure the ADP1071-1ARWZ operates within its specified temperature range, it's essential to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device. Additionally, the device should be operated within its specified power dissipation limits.
  • The recommended input capacitor type for the ADP1071-1ARWZ is a low-ESR ceramic capacitor with a value of 10uF to 22uF. This type of capacitor helps to filter out high-frequency noise and ensures stable operation of the device.
  • To troubleshoot issues with the ADP1071-1ARWZ, start by checking the input voltage and current, as well as the output voltage and current. Verify that the device is operated within its specified limits and that the PCB layout is correct. Use an oscilloscope to check for noise and ripple on the input and output lines. If the issue persists, consult the datasheet and application notes for guidance, or contact Analog Devices' technical support team.
  • Yes, the ADP1071-1ARWZ is suitable for use in high-reliability and automotive applications. It's built with high-quality materials and has undergone rigorous testing to ensure its reliability and robustness. However, it's essential to follow proper design and manufacturing practices, and to consult with Analog Devices' technical support team to ensure the device meets the specific requirements of the application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
