ADP1074ARWZ-RL - Analog Devices

Description: Isolated, Synchronous Forward Controller with Active Clamp and iCoupler®

Download ADP1074ARWZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

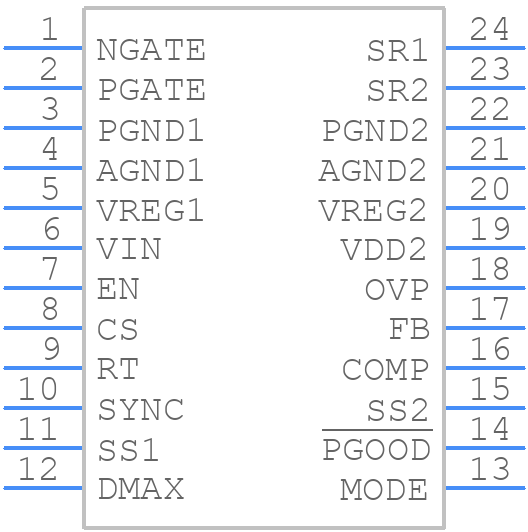

ADP1074ARWZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1074ARWZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-24 (SOIC)
click to zoom
3D Models
ADP1074ARWZ-RL - Analog Devices - 3D model - Small Outline Packages - RW-24 (SOIC)
click to zoom

ADP1074ARWZ-RL Details

  • Manufacturer Part Number:

    ADP1074ARWZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-10-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO AVAILABLE WITH SECONDARY INPUT VOLTAGE FROM 4.5 TO 36 V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER
