ADP1074WARWZ - Analog Devices

Description: Isolated, Synchronous Forward Controller with Active Clamp and iCoupler®

Download ADP1074WARWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

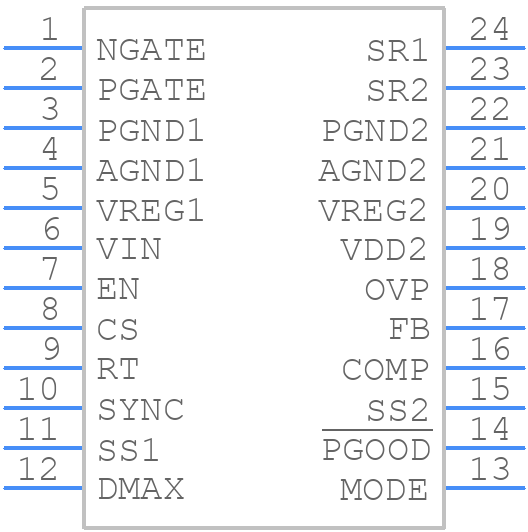

ADP1074WARWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1074WARWZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 300 MIL_2023-1
click to zoom
3D Models
ADP1074WARWZ - Analog Devices - 3D model - Small Outline Packages - SOIC 300 MIL_2023-1
click to zoom

ADP1074WARWZ Details

  • Manufacturer Part Number:

    ADP1074WARWZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-06-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO AVAILABLE WITH SECONDARY INPUT VOLTAGE FROM 4.5 TO 36 V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.7 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    600 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

ADP1074WARWZ Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the ADP1074WARWZ. It's recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
  • The selection of input and output capacitors depends on the specific application requirements. For the ADP1074WARWZ, it's recommended to use low-ESR capacitors with a minimum capacitance of 10uF for the input and 22uF for the output. The capacitor voltage rating should be at least 1.5 times the maximum input voltage.
  • The ADP1074WARWZ is rated for operation up to 125°C ambient temperature. However, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation. Consult the datasheet for thermal derating guidelines.
  • To ensure EMC compliance, follow proper PCB layout and design guidelines, use shielding and filtering components as needed, and ensure that the device is operated within its specified frequency range. Additionally, consult the datasheet for specific EMC guidelines and recommendations.
  • The ADP1074WARWZ is specified to operate from 4.5V to 18V input voltage. However, for optimal performance, it's recommended to operate the device within the 5V to 15V range to ensure maximum efficiency and stability.
