ADP122ACPZ-1.8-R7 - Analog Devices

Description: 5.5 V Input, 300 mA, Low Quiescent Current, CMOS Linear Regulator

Download ADP122ACPZ-1.8-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

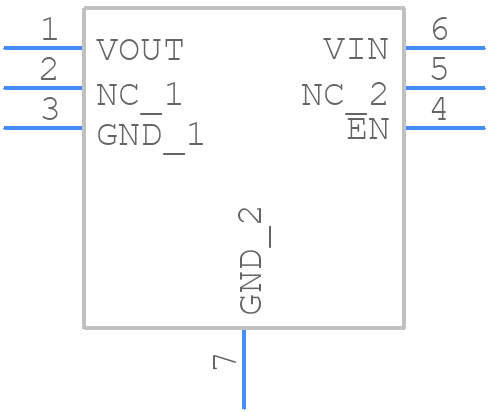

ADP122ACPZ-1.8-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP122ACPZ-1.8-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-6-3_2023
click to zoom
3D Models
ADP122ACPZ-1.8-R7 - Analog Devices - 3D model - Small Outline No-lead - CP-6-3_2023
click to zoom

ADP122ACPZ-1.8-R7 Details

  • Manufacturer Part Number:

    ADP122ACPZ-1.8-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    2 X 2 MM, ROHS COMPLIANT, LFCSP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    CP-6-3

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.15 V

  • Dropout Voltage1-Nom:

    0.085 V

  • Input Voltage Absolute-Max:

    6.5 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.3 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Line Regulation-Max:

    0.00288%

  • Load Regulation-Max:

    0.005382%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    1.836 V

  • Output Voltage1-Min:

    1.764 V

  • Output Voltage1-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.65 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    2 mm

ADP122ACPZ-1.8-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP122ACPZ-1.8-R7 involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, it's essential to follow the recommended capacitor values and types, and to place them as close to the device as possible. Additionally, the input and output capacitors should be chosen to ensure that the device operates within its stable region.
  • The ADP122ACPZ-1.8-R7 is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to consult the datasheet and perform thermal analysis to ensure the device operates within its specified temperature range.
  • Yes, the ADP122ACPZ-1.8-R7 is suitable for high-reliability and automotive applications. It's manufactured using a high-reliability process, and it's qualified to the AEC-Q100 standard for automotive applications. However, it's essential to consult the datasheet and application notes to ensure the device meets the specific requirements of your application.
  • To troubleshoot issues with the ADP122ACPZ-1.8-R7, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component placement to ensure they meet the recommended guidelines. Use an oscilloscope to measure the output voltage and current, and consult the datasheet and application notes for troubleshooting guides and FAQs.
