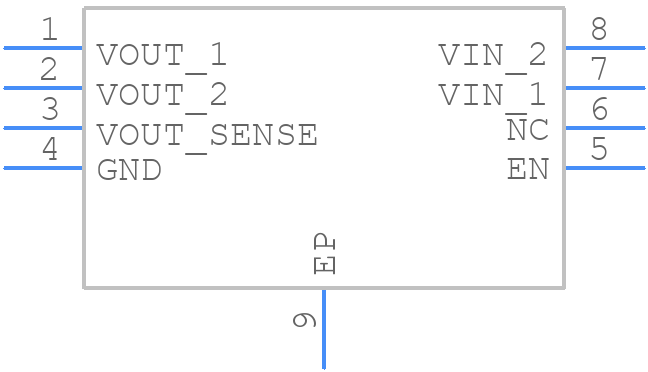

ADP124ACPZ-3.3-R7 - Analog Devices

ADP124ACPZ-3.3-R7 Details

• Manufacturer Part Number:

  ADP124ACPZ-3.3-R7

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Package Description:

  2 X 2 MM, ROHS COMPLIANT, LFCSP-8

• Pin Count:

  8

• Manufacturer Package Code:

  CP-8-8

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.23 V

• Dropout Voltage1-Nom:

  0.13 V

• Input Voltage Absolute-Max:

  6.5 V

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  2.3 V

• JESD-30 Code:

  S-PDSO-N8

• JESD-609 Code:

  e4

• Length:

  2 mm

• Line Regulation-Max:

  0.528%

• Load Regulation-Max:

  0.016467%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current1-Max:

  0.5 A

• Output Voltage1-Max:

  3.3495 V

• Output Voltage1-Min:

  3.234 V

• Output Voltage1-Nom:

  3.3 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC8,.08,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR, 7 INCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  0.65 mm

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Tolerance-Max:

  1.5%

• Width:

  2 mm
