ADP124ARHZ-3.3-R7 - Analog Devices

Description: 5.5 V Input, 500 mA, Low Quiescent Current, CMOS Linear Regulators

Download ADP124ARHZ-3.3-R7 Model

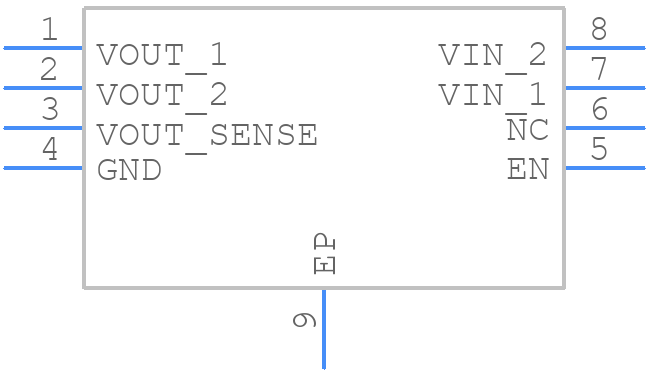

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADP124ARHZ-3.3-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - so-ep-ren1
click to zoom
3D Models
ADP124ARHZ-3.3-R7 - Analog Devices  - 3D model - Small Outline Packages - so-ep-ren1
click to zoom

ADP124ARHZ-3.3-R7 Details

  • Manufacturer Part Number:

    ADP124ARHZ-3.3-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187AAT, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RH-8-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.23 V

  • Dropout Voltage1-Nom:

    0.13 V

  • Input Voltage Absolute-Max:

    6.5 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.3 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max:

    0.528%

  • Load Regulation-Max:

    0.016467%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    3.3495 V

  • Output Voltage1-Min:

    3.234 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.5%

  • Width:

    3 mm
