ADP125ACPZ-R7 - Analog Devices

Description: Input voltage supply range: 2.3 V to 5.5 V 500 mA maximum output current Fixed and adjustable output voltage versions 1% initial accuracy Up to 31 fixed-output voltage options available from 1.75 V to 3.3 V Adjustable-output voltage range from 0.8 V to 5.0 V Very low dropout voltage: 130 mV Low quiescent current: 45 µA Low shutdown current: <1 µA Excellent PSRR performance: 60 dB at 100 kHz Excellent load/line transient response Optimized for small 1.0 μF ceramic capacitors Current limit and th

Download ADP125ACPZ-R7 Model

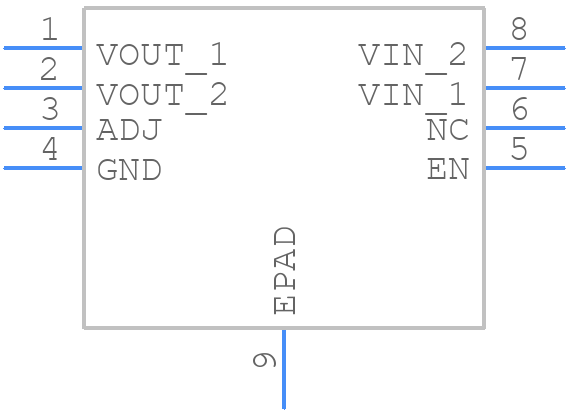

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADP125ACPZ-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-[LFCSP_UD
click to zoom
3D Models
ADP125ACPZ-R7 - Analog Devices  - 3D model - Small Outline No-lead - 8-[LFCSP_UD
click to zoom

ADP125ACPZ-R7 Details

  • Manufacturer Part Number:

    ADP125ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.23 V

  • Dropout Voltage1-Nom:

    0.13 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Line Regulation-Max (%/V):

    0.05

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    5 V

  • Output Voltage1-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.65 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

ADP125ACPZ-R7 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. It's also recommended to keep the thermal path short and direct to the heat sink or thermal pad.
  • To ensure a stable and accurate output voltage, it's essential to decouple the input and output pins with ceramic capacitors (e.g., 1uF and 10uF) and use a low-ESR output capacitor (e.g., 10uF). Additionally, ensure the input voltage is within the recommended range and the device is operated within its specified temperature range.
  • Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device.
  • Implementing overcurrent protection (OCP) and overtemperature protection (OTP) circuits can help prevent damage to the device. OCP can be achieved using a current sense resistor and a comparator, while OTP can be implemented using a thermistor and a comparator.
  • A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 1uF to 10uF is recommended for input decoupling. This helps to filter out noise and ensure a stable input voltage.
