ADP125ARHZ - Analog Devices

Description: Linear Voltage Regulators 500mA LDO Adjustable Vout

Download ADP125ARHZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

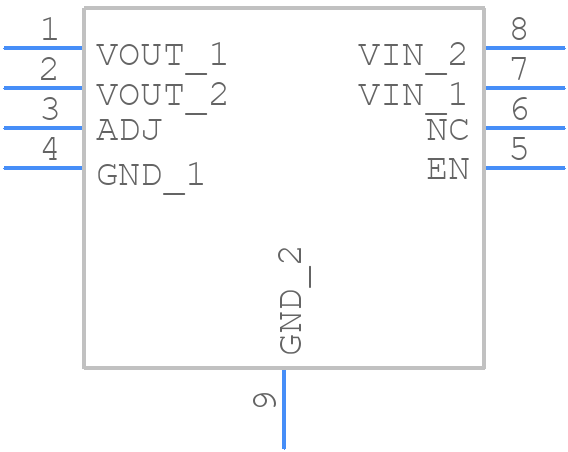

ADP125ARHZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP125ARHZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Mini Small Outline Package with Exposed Pad [MINI_SO_EP] (RH-8-1)-1
click to zoom
3D Models
ADP125ARHZ - Analog Devices - 3D model - Small Outline Packages - 8-Lead Mini Small Outline Package with Exposed Pad [MINI_SO_EP] (RH-8-1)-1
click to zoom

ADP125ARHZ Details

  • Manufacturer Part Number:

    ADP125ARHZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187AAT, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RH-8-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.23 V

  • Dropout Voltage1-Nom:

    0.13 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.05

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    5 V

  • Output Voltage1-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADP125ARHZ Frequently Asked Questions (FAQs)

  • The ADP125ARHZ is a high-frequency device, so it's essential to follow good PCB layout practices to minimize noise and ensure optimal performance. Place the device close to the power source, use a solid ground plane, and keep the input and output traces short and separate. Also, avoid running digital lines near the device to minimize noise coupling.
  • To ensure stability, make sure to follow the recommended compensation network and component values specified in the datasheet. Also, ensure that the output capacitor is properly sized and placed close to the device. Additionally, avoid over-compensating the device, as this can lead to oscillation.
  • The ADP125ARHZ has an absolute maximum input voltage rating of 6.5V. Exceeding this voltage can damage the device. However, the recommended operating input voltage range is 2.7V to 5.5V for optimal performance and reliability.
  • The ADP125ARHZ is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating temperature range and consider derating the device's performance at high temperatures.
  • To troubleshoot issues with the ADP125ARHZ, start by verifying the input voltage, output voltage, and output current. Check the device's pin connections, PCB layout, and component values. Use an oscilloscope to measure the output voltage and current waveforms. Consult the datasheet and application notes for guidance on troubleshooting common issues.
