ADP1290ACBZ-R7 - Analog Devices

Description: Power Switch ICs - Power Distribution 12V Load Switch for Inrush Control

Download ADP1290ACBZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

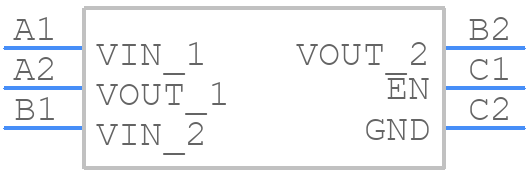

Symbol
ADP1290ACBZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1290ACBZ-R7 - Analog Devices PCB footprint - BGA - BGA - [WLCSP](CB-6-2)
click to zoom
3D Models
ADP1290ACBZ-R7 - Analog Devices - 3D model - BGA - [WLCSP](CB-6-2)
click to zoom

ADP1290ACBZ-R7 Details

  • Manufacturer Part Number:

    ADP1290ACBZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    CB-6-2

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Built-in Protections:

    TRANSIENT

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PBGA-B6

  • JESD-609 Code:

    e1

  • Length:

    1.45 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA6,2X3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.675 mm

  • Supply Voltage-Max:

    13.2 V

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    6.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-on Time:

    2000 µs

  • Width:

    0.95 mm

ADP1290ACBZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP1290 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance.
  • To ensure stability, ensure that the output capacitor is properly sized, the input voltage is within the recommended range, and the device is operated within the recommended frequency range. Additionally, adding a small resistor in series with the output capacitor can help prevent oscillations.
  • The ADP1290 can deliver up to 2A of output current, but this may vary depending on the input voltage, output voltage, and ambient temperature. It's essential to check the device's thermal performance and power dissipation to ensure reliable operation.
  • The ADP1290 is rated for operation up to 125°C, but its performance may degrade at higher temperatures. It's essential to consider the device's thermal performance and power dissipation when operating in high-temperature environments.
  • To troubleshoot issues with the ADP1290, check the input voltage, output voltage, and output current. Verify that the device is operated within the recommended specifications, and check for any signs of overheating or physical damage. Use an oscilloscope to observe the output voltage waveform and check for any signs of oscillations or noise.
