ADP1614ACPZ-650-R7 - Analog Devices

Description: ANALOG DEVICES - ADP1614ACPZ-650-R7 - DC-DC Switching Boost (Step Up) Regulator, Adjustable, 2.5V to 5.5V in, 2.5V-20V/4A out, LFCSP-10

Download ADP1614ACPZ-650-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

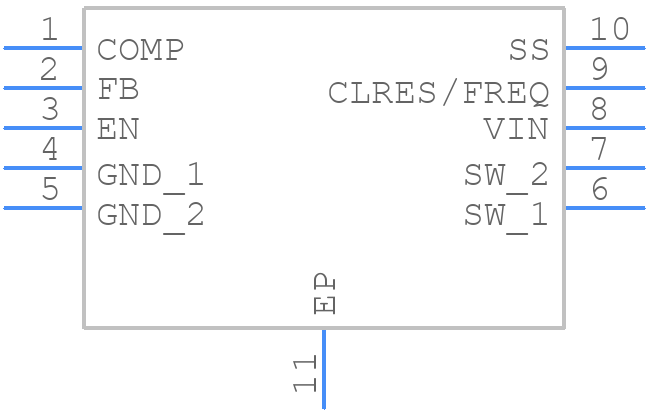

ADP1614ACPZ-650-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1614ACPZ-650-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-Lead Frame Chip Scale Package [LFCSP_WD]
click to zoom
3D Models
ADP1614ACPZ-650-R7 - Analog Devices - 3D model - Small Outline No-lead - 10-Lead Frame Chip Scale Package [LFCSP_WD]
click to zoom

ADP1614ACPZ-650-R7 Details

  • Manufacturer Part Number:

    ADP1614ACPZ-650-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OUTPUT VOLTAGE RANGE FROM 2.5 V TO 20 V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.65 A

  • Output Voltage-Max:

    20 V

  • Output Voltage-Min:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    650 kHz

  • Technology:

    DMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

ADP1614ACPZ-650-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP1614ACPZ-650-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device should be operated within its recommended operating conditions, and the input voltage should be well-regulated.
  • The ADP1614ACPZ-650-R7 is rated for operation from -40°C to +125°C. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C.
  • The ADP1614ACPZ-650-R7 is a commercial-grade device and may not meet the requirements for high-reliability or aerospace applications. For such applications, it is recommended to use a device that is specifically designed and qualified for those markets, such as the ADP1614ARSZ-650-R7.
  • To troubleshoot issues with the ADP1614ACPZ-650-R7, start by verifying that the device is properly powered and that the input and output capacitors are of high quality and properly connected. Check the input voltage and current, and ensure that the device is operating within its recommended conditions. Use an oscilloscope to check for oscillations or other anomalies in the output voltage.
