ADP1706ACPZ-3.0-R7 - Analog Devices

Description: IC REG LINEAR 3V 1A 8LFCSP

Download ADP1706ACPZ-3.0-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

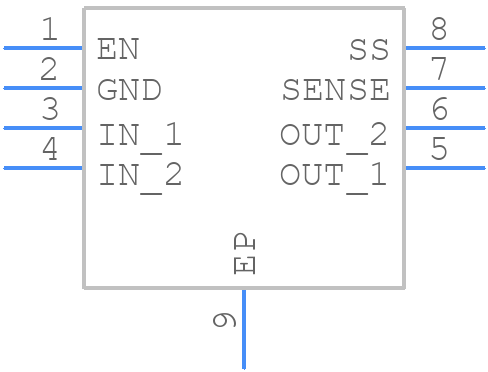

ADP1706ACPZ-3.0-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1706ACPZ-3.0-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - ADP1706ACPZ-3.0-R7
click to zoom
3D Models
ADP1706ACPZ-3.0-R7 - Analog Devices - 3D model - Small Outline No-lead - ADP1706ACPZ-3.0-R7
click to zoom

ADP1706ACPZ-3.0-R7 Details

  • Manufacturer Part Number:

    ADP1706ACPZ-3.0-R7

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LFCSP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.63 V

  • Dropout Voltage1-Nom:

    0.365 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3.6 V

  • JESD-30 Code:

    S-XQCC-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max:

    0.0057%

  • Load Regulation-Max:

    0.0297%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    3.075 V

  • Output Voltage1-Min:

    2.925 V

  • Output Voltage1-Nom:

    3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.9 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Voltage Tolerance-Max:

    2.5%

  • Width:

    3 mm

ADP1706ACPZ-3.0-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP1706ACPZ-3.0-R7 should prioritize noise reduction and thermal management. Keep the input and output capacitors close to the device, use a solid ground plane, and ensure good thermal conduction to the PCB. Refer to Analog Devices' application notes and layout guidelines for more information.
  • To ensure stability, follow the recommended component values and PCB layout guidelines. Additionally, make sure the input and output capacitors are of high quality and have low ESR. A minimum of 10uF input capacitance and 22uF output capacitance is recommended. Also, ensure the device is properly decoupled from the power supply.
  • The ADP1706ACPZ-3.0-R7 is rated for operation up to 125°C ambient temperature. However, for reliable operation, it's recommended to keep the junction temperature below 115°C. This can be achieved by ensuring good thermal conduction to the PCB and using a heat sink if necessary.
  • The ADP1706ACPZ-3.0-R7 is a commercial-grade device, but Analog Devices offers automotive-grade and high-reliability versions of the device, such as the ADP1706ACPZ-3.0-R7A or ADP1706ACPZ-3.0-R7H. These versions have additional testing and qualification for high-reliability and automotive applications.
  • To troubleshoot issues, start by verifying the input voltage, output load, and PCB layout. Check for signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to monitor the output voltage and input voltage ripple. Consult Analog Devices' application notes and troubleshooting guides for more information.
