ADP1706ARDZ-2.5-R7 - Analog Devices

Description: ► Maximum output current: 1 A ► Input voltage range: 2.5 V to 5.5 V ► Low shutdown current: <1 µA ► Low dropout voltage: 345 mV at 1 A load ► Initial accuracy: ±1% ► Accuracy over line, load, and temperature: ±2.5% ► 16 fixed output voltage options with soft start ► 0.75 V to 3.3 V (ADP1706) ► 16 fixed output voltage options with tracking ► 0.75 V to 3.3 V (ADP1707) ► Adjustable output voltage option ► 0.8 V to 5.0 V (ADP1708) ► Stable with small 4.7 µF ceramic output capacitor ► Excellent load

Download ADP1706ARDZ-2.5-R7 Model

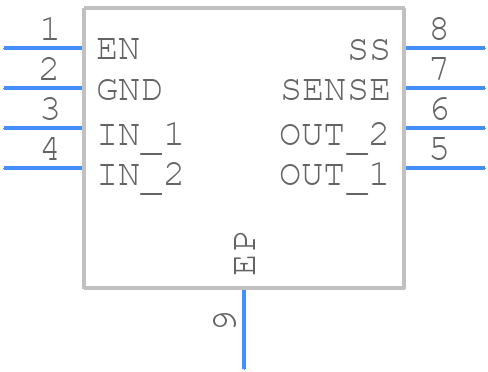

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADP1706ARDZ-2.5-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RD-8-1)
click to zoom
3D Models
ADP1706ARDZ-2.5-R7 - Analog Devices  - 3D model - Small Outline Packages - (RD-8-1)
click to zoom

ADP1706ARDZ-2.5-R7 Details

  • Manufacturer Part Number:

    ADP1706ARDZ-2.5-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RD-8-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.63 V

  • Dropout Voltage1-Nom:

    0.365 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3.1 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max:

    0.006%

  • Load Regulation-Max:

    0.02475%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    2.5625 V

  • Output Voltage1-Min:

    2.4375 V

  • Output Voltage1-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2.5%

  • Width:

    3.9 mm

ADP1706ARDZ-2.5-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP1706 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance.
  • To ensure stability, ensure that the output capacitor is properly sized, the input voltage is within the recommended range, and the device is operated within the recommended temperature range. Additionally, adding a small capacitor (e.g., 10nF) between the VOUT and GND pins can help prevent oscillations.
  • The ADP1706 can handle input voltages up to 5.5V, but it's recommended to operate within the recommended input voltage range of 2.7V to 5.5V for optimal performance and reliability.
  • The ADP1706 is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the output current and ensure proper thermal management to ensure reliable operation.
  • The output voltage of the ADP1706 can be calculated using the formula: VOUT = (R1/R2) * (VIN - VREF), where R1 and R2 are the resistors in the feedback network, VIN is the input voltage, and VREF is the internal reference voltage (1.25V).
