ADP1707ARDZ-1.2-R7 - Analog Devices

Description: 1 A, Low Dropout, CMOS Linear Regulator with Tracking 2.5 V to 5.5 V, 0.75 V to 3.3 V -40°C to +125°C

Download ADP1707ARDZ-1.2-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

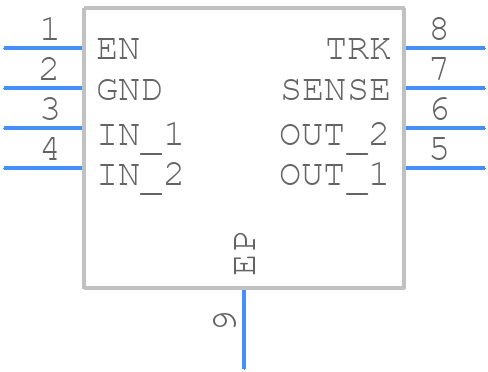

ADP1707ARDZ-1.2-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1707ARDZ-1.2-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RD-8-4-1
click to zoom
3D Models
ADP1707ARDZ-1.2-R7 - Analog Devices - 3D model - Small Outline Packages - RD-8-4-1
click to zoom

ADP1707ARDZ-1.2-R7 Details

  • Manufacturer Part Number:

    ADP1707ARDZ-1.2-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RD-8-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.6 V

  • Dropout Voltage1-Nom:

    0.6 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max:

    0.0044%

  • Load Regulation-Max:

    0.0119%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    1.23 V

  • Output Voltage1-Min:

    1.17 V

  • Output Voltage1-Nom:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2.5%

  • Width:

    3.9 mm

ADP1707ARDZ-1.2-R7 Frequently Asked Questions (FAQs)

  • The recommended input capacitor value for the ADP1707 is 1uF to 10uF, depending on the input voltage and output current requirements. A larger capacitor can help reduce input voltage ripple and improve overall performance.
  • To ensure stability and prevent oscillations, make sure to follow the recommended PCB layout guidelines, use a sufficient output capacitor, and add a compensation capacitor (Ccomp) between the COMP pin and GND. The value of Ccomp depends on the output capacitor value and the desired stability margin.
  • The maximum output current capability of the ADP1707 is 700mA. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations. Be sure to check the datasheet for detailed information on output current capability and thermal derating.
  • The ADP1707 is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may be affected at high temperatures. Be sure to check the datasheet for thermal derating information and consider using thermal management techniques, such as heat sinks or thermal interfaces, to ensure reliable operation.
  • The output voltage of the ADP1707 can be adjusted by using a resistive divider network between the output and the FB pin. The ratio of the resistors determines the output voltage. Be sure to follow the datasheet guidelines for setting the output voltage and ensure that the resistors are of sufficient precision and stability.
