ADP1720TRMZ-EP - Analog Devices

Description: LDO Regulator Pos 1.225V to 5V 0.05A 8-Pin MSOP Tube

Download ADP1720TRMZ-EP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

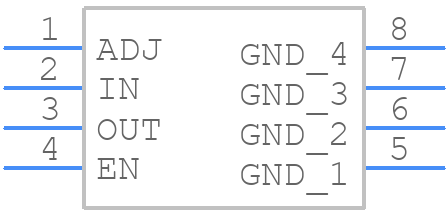

ADP1720TRMZ-EP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1720TRMZ-EP - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Mini Small Outline Package [MSOP] (RM-8)
click to zoom
3D Models
ADP1720TRMZ-EP - Analog Devices - 3D model - Small Outline Packages - 8-Lead Mini Small Outline Package [MSOP] (RM-8)
click to zoom

ADP1720TRMZ-EP Details

  • Manufacturer Part Number:

    ADP1720TRMZ-EP

  • Source Url Status Check Date:

    2013-05-01 14:56:45.212

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.48 V

  • Dropout Voltage1-Nom:

    0.275 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.02

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -55 °C

  • Output Current1-Max:

    0.05 A

  • Output Voltage1-Max:

    5 V

  • Output Voltage1-Min:

    1.225 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADP1720TRMZ-EP Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP1720TRMZ-EP involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the power supply traces away from the analog signals.
  • To ensure stability, it's essential to follow the recommended compensation network configuration, use a suitable output capacitor, and ensure the input voltage is within the recommended range. Additionally, the device should be operated within the recommended temperature range, and the PCB layout should be designed to minimize parasitic inductance and capacitance.
  • The ADP1720TRMZ-EP can deliver up to 2A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. It's essential to check the device's thermal performance and ensure it's operated within the recommended specifications to avoid overheating.
  • The ADP1720TRMZ-EP is rated for operation up to 125°C, but it's essential to consider the device's thermal performance and ensure it's operated within the recommended specifications. Additionally, the device's output current capability may be derated at higher temperatures, and the user should consult the datasheet for more information.
  • To troubleshoot issues with the ADP1720TRMZ-EP, it's essential to follow a systematic approach, starting with checking the input voltage, output voltage, and output current. The user should also verify the PCB layout, ensure the device is operated within the recommended specifications, and check for any signs of overheating or damage.
