ADP1740ACPZ-1.1-R7 - Analog Devices

Description: Linear Voltage Regulators 2A LDO Fix V-out Family

Download ADP1740ACPZ-1.1-R7 Model

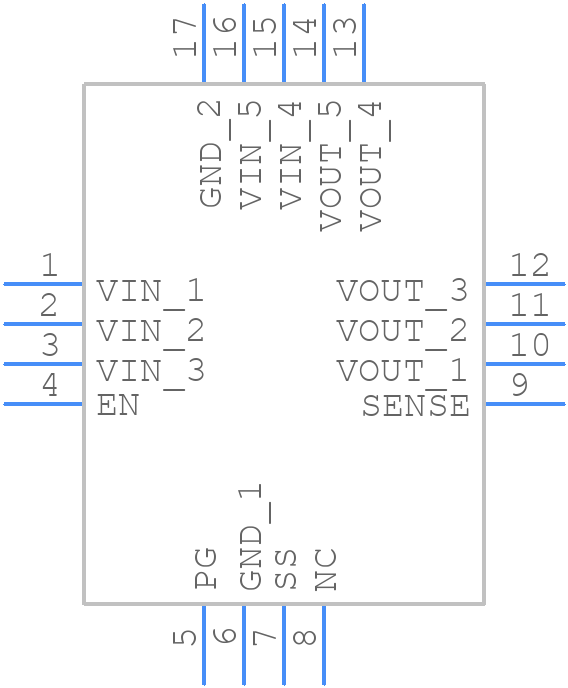

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADP1740ACPZ-1.1-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ADP1740ACPZ-1.1-R7
click to zoom
3D Models
ADP1740ACPZ-1.1-R7 - Analog Devices  - 3D model - Quad Flat No-Lead - ADP1740ACPZ-1.1-R7
click to zoom

ADP1740ACPZ-1.1-R7 Details

  • Manufacturer Part Number:

    ADP1740ACPZ-1.1-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220VGGC, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-23

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.28 V

  • Dropout Voltage1-Nom:

    0.5 V

  • Input Voltage Absolute-Max:

    3.6 V

  • Input Voltage-Max:

    3.6 V

  • Input Voltage-Min:

    1.6 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Line Regulation-Max:

    0.0069%

  • Load Regulation-Max:

    0.011%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    2 A

  • Output Voltage1-Max:

    1.122 V

  • Output Voltage1-Min:

    1.078 V

  • Output Voltage1-Nom:

    1.1 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Voltage Tolerance-Max:

    2%

  • Width:

    4 mm

ADP1740ACPZ-1.1-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP1740 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure stability and prevent oscillations in the ADP1740, it's crucial to follow the recommended compensation network, choose the correct output capacitor, and ensure that the input and output voltages are within the specified range. Additionally, the PCB layout should be designed to minimize parasitic inductance and capacitance. It's also recommended to add a small series resistor (e.g., 1 ohm) between the output and the output capacitor to dampen any potential oscillations.
  • The maximum output current capability of the ADP1740 is 1.1 A. However, the device can deliver higher currents for short durations. It's essential to ensure that the output current does not exceed the maximum rating for an extended period to prevent overheating and damage to the device.
  • The power dissipation of the ADP1740 can be calculated using the following formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Pd is the power dissipation, Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. It's essential to ensure that the power dissipation does not exceed the maximum rating to prevent overheating and damage to the device.
  • The recommended input capacitor value for the ADP1740 is 1 uF to 10 uF, with a voltage rating of at least 2 times the input voltage. A low-ESR ceramic capacitor (e.g., X5R or X7R) is recommended due to its low equivalent series resistance (ESR) and high ripple current capability.
