ADP1761ACPZ-1.1-R7 - Analog Devices

Description: 1 A, Low VIN, Low Noise, CMOS Linear Regulator

Download ADP1761ACPZ-1.1-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

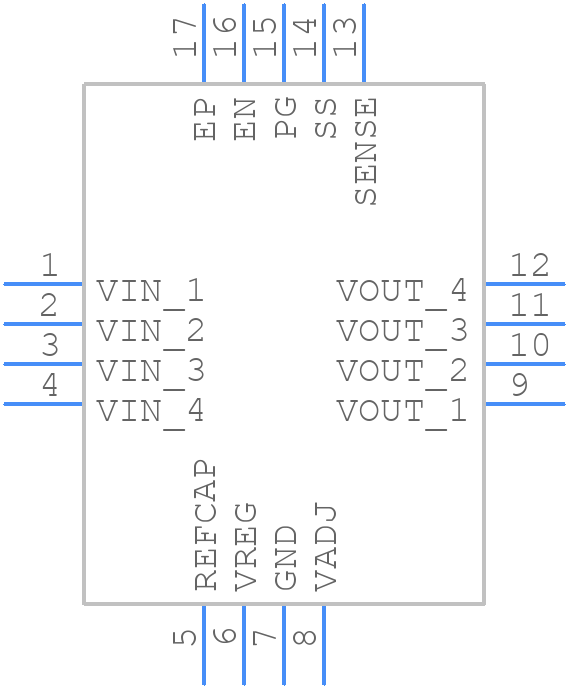

ADP1761ACPZ-1.1-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1761ACPZ-1.1-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-22)/2022
click to zoom
3D Models
ADP1761ACPZ-1.1-R7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-22)/2022
click to zoom

ADP1761ACPZ-1.1-R7 Details

  • Manufacturer Part Number:

    ADP1761ACPZ-1.1-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.53 V

  • Dropout Voltage1-Nom:

    0.3 V

  • Input Voltage Absolute-Max:

    2.16 V

  • Input Voltage-Max:

    1.98 V

  • Input Voltage-Min:

    1.1 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max:

    0.00112%

  • Load Regulation-Max:

    0.00484%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    1.1165 V

  • Output Voltage1-Min:

    1.0985 V

  • Output Voltage1-Nom:

    1.1 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.5%

  • Width:

    3 mm

ADP1761ACPZ-1.1-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP1761 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the digital and analog signals separate.
  • The choice of input and output capacitors depends on the specific application and the desired performance. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be at least 10uF, and the output capacitor should be at least 22uF. X5R or X7R ceramic capacitors are good options.
  • The maximum ambient temperature for the ADP1761 is 125°C. However, the device can operate at a higher temperature with derating. It's recommended to consult the datasheet for the thermal derating curve.
  • Yes, the ADP1761 is suitable for high-reliability applications. It's manufactured using a high-reliability process, and it's qualified to various industry standards such as AEC-Q100. However, it's recommended to consult the datasheet and the manufacturer's documentation for specific details on the device's reliability and qualification.
  • Troubleshooting issues with the ADP1761 involves checking the input voltage, output voltage, and current. It's also recommended to check the device's thermal performance and to ensure that the PCB layout is correct. Additionally, it's recommended to consult the datasheet and the manufacturer's application notes for specific troubleshooting guidelines.
