ADP1761ACPZ1.25-R7 - Analog Devices

Description: 1 A, Low VIN, Low Noise, CMOS Linear Regulator

Download ADP1761ACPZ1.25-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

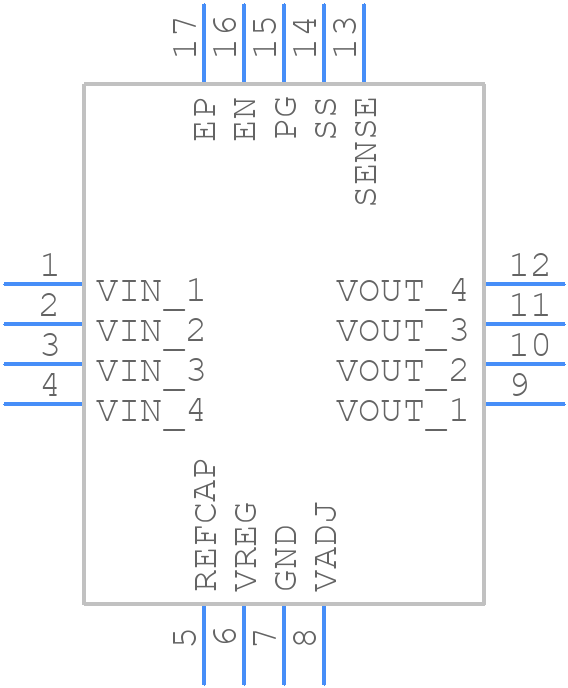

ADP1761ACPZ1.25-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1761ACPZ1.25-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-22)
click to zoom
3D Models
ADP1761ACPZ1.25-R7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-22)
click to zoom

ADP1761ACPZ1.25-R7 Details

  • Manufacturer Part Number:

    ADP1761ACPZ1.25-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.53 V

  • Dropout Voltage1-Nom:

    0.3 V

  • Input Voltage Absolute-Max:

    2.16 V

  • Input Voltage-Max:

    1.98 V

  • Input Voltage-Min:

    1.45 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max:

    0.00099%

  • Load Regulation-Max:

    0.0055%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    1.268 V

  • Output Voltage1-Min:

    1.2312 V

  • Output Voltage1-Nom:

    1.25 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.5%

  • Width:

    3 mm

ADP1761ACPZ1.25-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP1761 should minimize noise and ensure good thermal dissipation. Keep the input and output capacitors close to the device, and use a solid ground plane to reduce noise. Also, ensure that the thermal pad is connected to a thermal relief pattern to dissipate heat efficiently.
  • The output capacitor selection depends on the output voltage, output current, and desired output ripple. A general rule of thumb is to choose a capacitor with a capacitance value of at least 10uF and a voltage rating of at least 1.5 times the output voltage. Additionally, consider the ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) of the capacitor to ensure it can handle the output current and frequency.
  • The ADP1761 has an absolute maximum input voltage rating of 6V. However, the recommended input voltage range is 2.7V to 5.5V. Exceeding the absolute maximum input voltage can damage the device.
  • The ADP1761 has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal management and ensure that the device is operated within the recommended temperature range to ensure optimal performance and reliability.
  • To troubleshoot issues with the ADP1761, start by checking the input voltage, output voltage, and output current. Ensure that the input and output capacitors are properly selected and placed. Check for any noise or interference on the input or output lines. Also, verify that the device is operated within the recommended temperature range and that the thermal management is adequate. If the issue persists, consult the datasheet and application notes or contact Analog Devices' technical support for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADP1761ACPZ1.25-R7 Overview

Use the download button to access the ADP1761ACPZ1.25-R7 schematic symbol, PCB footprint, and 3D model.
