ADP1761WACPZ-R7 - Analog Devices

Description: 1 A, Low VIN, Low Noise, CMOS Linear Regulator

Download ADP1761WACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

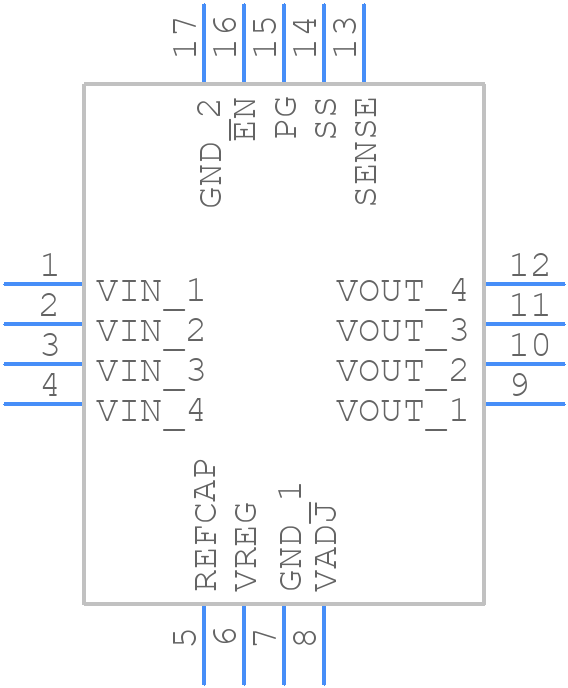

Symbol
ADP1761WACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1761WACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-22)
click to zoom
3D Models
ADP1761WACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-22)
click to zoom

ADP1761WACPZ-R7 Details

  • Manufacturer Part Number:

    ADP1761WACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.053 V

  • Dropout Voltage1-Nom:

    0.03 V

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.15

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    1.5 V

  • Output Voltage1-Min:

    0.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

ADP1761WACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP1761WACPZ-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the power supply traces away from the analog signals.
  • To ensure stability, it's essential to follow the recommended operating conditions, such as input voltage range, output current, and temperature range. Additionally, the output capacitor should be selected based on the output voltage and current requirements, and the input capacitor should be chosen to filter out high-frequency noise.
  • The ADP1761WACPZ-R7 can deliver up to 1.2A of output current, but this depends on the input voltage, output voltage, and ambient temperature. It's recommended to check the datasheet for the specific output current capability under different operating conditions.
  • The ADP1761WACPZ-R7 is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to check the datasheet for the specific temperature range and to consider using thermal management techniques, such as heat sinks or thermal interfaces, to keep the device within its recommended operating temperature range.
  • To troubleshoot issues with the ADP1761WACPZ-R7, start by checking the input voltage, output voltage, and output current to ensure they are within the recommended operating ranges. Then, check the PCB layout and component selection to ensure they meet the recommended guidelines. If the issue persists, consider using a scope or other diagnostic tools to analyze the device's behavior and identify the root cause of the problem.
