ADP1762ACPZ-1.3-R7 - Analog Devices

Description: 2 A maximum output current Low input voltage supply range VIN = 1.10 V to 1.98 V, no external bias supply required Fixed output voltage range: VOUT_FIXED = 0.9 V to 1.5 V Adjustable output voltage range: VOUT_ADJ = 0.5 V to 1.5 V Ultralow noise: 2 μV rms, 100 Hz to 100 kHz Noise spectral density 4 nV/√Hz at 10 kHz 3 nV/√Hz at 100 kHz Low dropout voltage: 62 mV typical at 2 A load Operating supply current: 4.5 mA typical at no load ±1.5% fixed output voltage accuracy over line, load, and temperat

Download ADP1762ACPZ-1.3-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

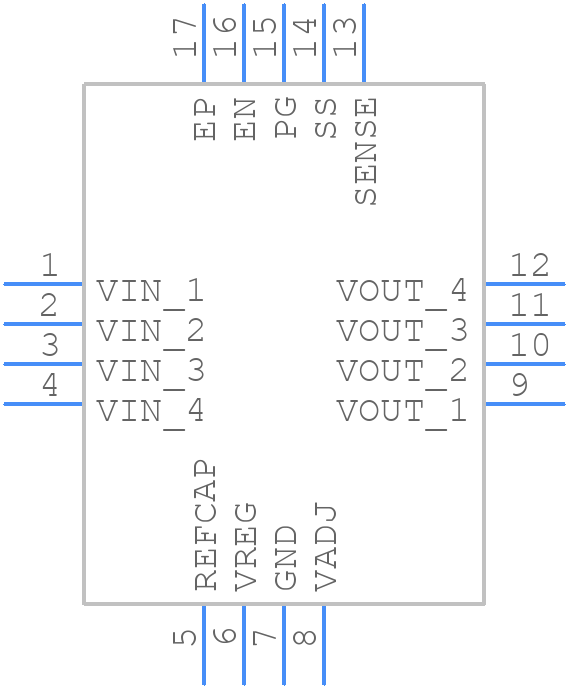

Symbol
ADP1762ACPZ-1.3-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1762ACPZ-1.3-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-22
click to zoom
3D Models
ADP1762ACPZ-1.3-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-22
click to zoom

ADP1762ACPZ-1.3-R7 Details

  • Manufacturer Part Number:

    ADP1762ACPZ-1.3-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.095 V

  • Dropout Voltage1-Nom:

    0.2 V

  • Input Voltage Absolute-Max:

    2.16 V

  • Input Voltage-Max:

    1.98 V

  • Input Voltage-Min:

    1.5 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max:

    0.000936%

  • Load Regulation-Max:

    0.0106067%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    2 A

  • Output Voltage1-Max:

    1.3195 V

  • Output Voltage1-Min:

    1.2805 V

  • Output Voltage1-Nom:

    1.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.5%

  • Width:

    3 mm

ADP1762ACPZ-1.3-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP1762 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor is properly sized, and the input voltage is within the recommended range. A minimum ESR of 0.1 ohms for the output capacitor is recommended.
  • The ADP1762 is rated for operation from -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
  • Yes, the ADP1762 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments. However, it's essential to follow the recommended operating conditions and design guidelines to ensure reliable operation.
  • To troubleshoot issues with the ADP1762, start by verifying the input voltage, output voltage, and component values. Check for any signs of overheating, and ensure that the PCB layout and component placement follow the recommended guidelines. Use an oscilloscope to monitor the output voltage and identify any signs of oscillation or noise.
