ADP1763ACPZ-0.9-R7 - Analog Devices

Description: LDO Regulator Pos 0.9V 3A 16-Pin LFCSP EP T/R

Download ADP1763ACPZ-0.9-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

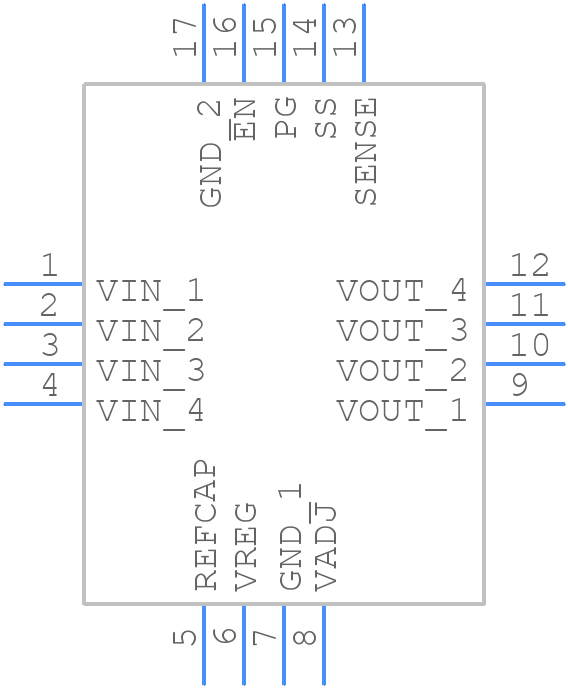

ADP1763ACPZ-0.9-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1763ACPZ-0.9-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-22)
click to zoom
3D Models
ADP1763ACPZ-0.9-R7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-22)
click to zoom

ADP1763ACPZ-0.9-R7 Details

  • Manufacturer Part Number:

    ADP1763ACPZ-0.9-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.145 V

  • Dropout Voltage1-Nom:

    0.2 V

  • Input Voltage Absolute-Max:

    2.16 V

  • Input Voltage-Max:

    1.98 V

  • Input Voltage-Min:

    1.1 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max:

    0.001188%

  • Load Regulation-Max:

    0.0121%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    3 A

  • Output Voltage1-Max:

    0.9135 V

  • Output Voltage1-Min:

    0.8865 V

  • Output Voltage1-Nom:

    0.9 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Voltage Tolerance-Max:

    1.5%

  • Width:

    3 mm

ADP1763ACPZ-0.9-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP1763 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
  • To ensure stability, ensure that the output capacitor is properly sized, the input voltage is within the recommended range, and the device is operated within the recommended temperature range. Additionally, adding a small capacitor (e.g., 10nF) between the VOUT and GND pins can help prevent oscillations.
  • The ADP1763 can deliver up to 3A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. It's essential to check the device's thermal performance and power dissipation to ensure reliable operation.
  • The ADP1763 is rated for operation up to 125°C, but its performance and reliability may degrade at higher temperatures. It's essential to consider the device's thermal performance and power dissipation when operating in high-temperature environments.
  • To troubleshoot issues with the ADP1763, start by verifying the input voltage, output voltage, and output current. Check for proper PCB layout, decoupling, and thermal management. Use an oscilloscope to inspect the output voltage waveform and look for signs of oscillation or noise. Consult the datasheet and application notes for guidance on troubleshooting and optimization.
