ADP1763WACPZ-1.0-R7 - Analog Devices

Description: ► 3 A maximum output current ► Low input voltage supply range ► VIN = 1.10 V to 1.98 V, no external bias supply required ► Fixed output voltage range: VOUT_FIXED = 0.9 V to 1.5 V ► Adjustable output voltage range: VOUT_ADJ = 0.5 V to 1.5 V ► Ultralow noise: 2 µV rms, 100 Hz to 100 kHz ► Noise spectral density ► 4 nV/√Hz at 10 kHz ► 3 nV/√Hz at 100 kHz ► Low dropout voltage: 95 mV typical at 3 A load ► Operating supply current: 4.5 mA typical at no load ► ±1.5% fixed output voltage accuracy over l

Download ADP1763WACPZ-1.0-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

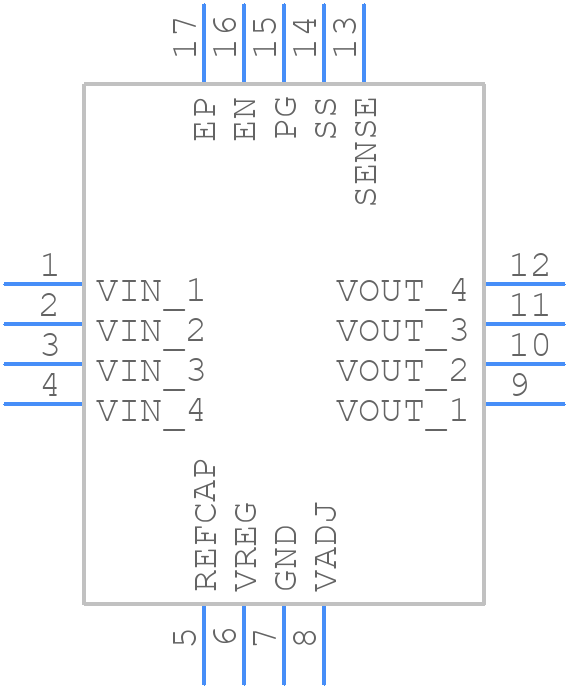

ADP1763WACPZ-1.0-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1763WACPZ-1.0-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-22
click to zoom
3D Models
ADP1763WACPZ-1.0-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-22
click to zoom

ADP1763WACPZ-1.0-R7 Details

  • Manufacturer Part Number:

    ADP1763WACPZ-1.0-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.145 V

  • Dropout Voltage1-Nom:

    0.2 V

  • Input Voltage Absolute-Max:

    2.16 V

  • Input Voltage-Max:

    1.98 V

  • Input Voltage-Min:

    1.1 V

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Line Regulation-Max:

    0.00117%

  • Load Regulation-Max:

    0.013455%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    3 A

  • Output Voltage1-Max:

    1.015 V

  • Output Voltage1-Min:

    0.985 V

  • Output Voltage1-Nom:

    1 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Voltage Tolerance-Max:

    1.5%

  • Width:

    3 mm

ADP1763WACPZ-1.0-R7 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the ADP1763WACPZ-1.0-R7 can be found in the ADP1763 Evaluation Board documentation and the ADP1763 Layout Guidelines document. It's essential to follow these guidelines to ensure proper thermal performance, noise reduction, and signal integrity.
  • The output capacitor selection depends on the specific application requirements, such as output voltage, current, and ripple. A general guideline is to use a low-ESR ceramic capacitor with a value between 10uF to 22uF. Refer to the ADP1763 datasheet and application notes for more detailed guidance.
  • The ADP1763WACPZ-1.0-R7 has an absolute maximum input voltage rating of 6.5V. However, the recommended operating input voltage range is 2.7V to 5.5V. Exceeding the absolute maximum rating can damage the device.
  • The ADP1763WACPZ-1.0-R7 has an operating junction temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to ensure proper thermal management and consider derating the device's performance at high temperatures.
  • To troubleshoot issues with the ADP1763WACPZ-1.0-R7, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component placement for any potential issues. Use an oscilloscope to measure the output voltage and current waveforms. Consult the ADP1763 datasheet, application notes, and Analog Devices' support resources for guidance on troubleshooting and debugging.
