ADP1763WACPZ-1.2-R7 - Analog Devices

Description: 3 A, Low VIN, Low Noise, CMOS Linear Regulator

Download ADP1763WACPZ-1.2-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

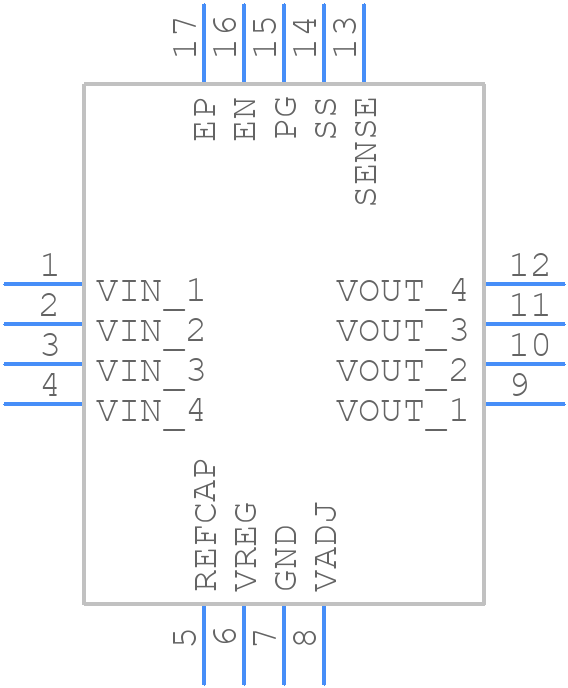

ADP1763WACPZ-1.2-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1763WACPZ-1.2-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-22
click to zoom
3D Models
ADP1763WACPZ-1.2-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-22
click to zoom

ADP1763WACPZ-1.2-R7 Details

  • Manufacturer Part Number:

    ADP1763WACPZ-1.2-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.145 V

  • Dropout Voltage1-Nom:

    0.095 V

  • Input Voltage Absolute-Max:

    2.16 V

  • Input Voltage-Max:

    1.98 V

  • Input Voltage-Min:

    1.4 V

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Line Regulation-Max:

    0.001044%

  • Load Regulation-Max:

    0.016146%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    3 A

  • Output Voltage1-Max:

    1.218 V

  • Output Voltage1-Min:

    1.182 V

  • Output Voltage1-Nom:

    1.2 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Voltage Tolerance-Max:

    1.5%

  • Width:

    3 mm

ADP1763WACPZ-1.2-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP1763WACPZ-1.2-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To optimize output voltage accuracy, ensure that the input voltage is within the recommended range, use a high-precision resistor for the feedback network, and minimize noise and EMI on the feedback path. Additionally, consider using a voltage reference with low temperature coefficient and low noise.
  • The ADP1763WACPZ-1.2-R7 can deliver up to 3A of output current. However, the maximum output current capability depends on the input voltage, output voltage, and thermal conditions. It's essential to ensure that the device is operated within its recommended operating conditions to avoid overheating and damage.
  • To protect the ADP1763WACPZ-1.2-R7 from overvoltage and undervoltage conditions, consider using voltage supervisors or voltage monitors that can detect and respond to voltage faults. Additionally, use input and output capacitors with a high voltage rating to absorb voltage transients and spikes.
  • The ADP1763WACPZ-1.2-R7 has a thermal pad that should be connected to a solid ground plane or a thermal relief pattern on the PCB. Ensure good airflow around the device, and consider using a heat sink or thermal interface material to reduce the thermal resistance. Monitor the device temperature and adjust the thermal management strategy accordingly.
