ADP1763WACPZ-R7 - Analog Devices

Description: LDO Voltage Regulators ADP1763WACPZ

Download ADP1763WACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

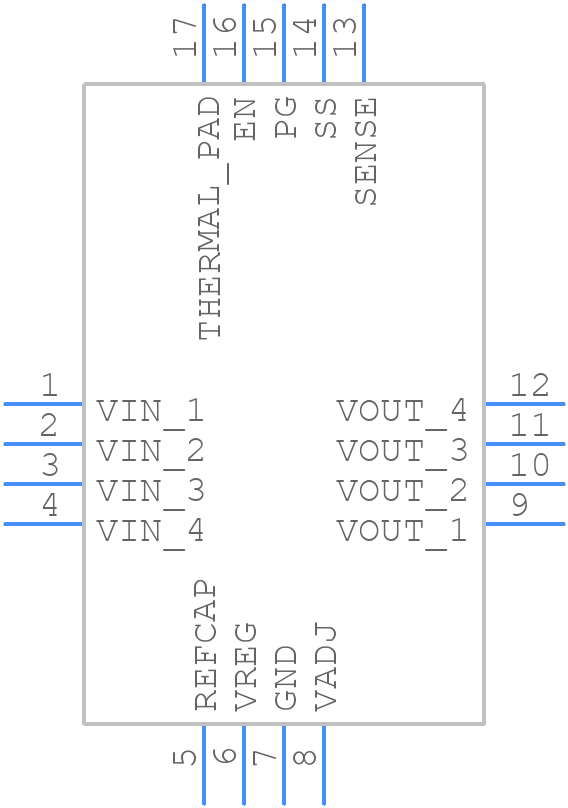

Symbol
ADP1763WACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1763WACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Lead Lead Frame Chip Scale Package [LFCS
click to zoom
3D Models
ADP1763WACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - 16-Lead Lead Frame Chip Scale Package [LFCS
click to zoom

ADP1763WACPZ-R7 Details

  • Manufacturer Part Number:

    ADP1763WACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.145 V

  • Dropout Voltage1-Nom:

    0.095 V

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.15

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    3 A

  • Output Voltage1-Max:

    1.5 V

  • Output Voltage1-Min:

    0.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

ADP1763WACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP1763WACPZ-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended PCB layout, use the correct output capacitor value and type, and ensure that the input voltage is within the recommended range. Additionally, the device's compensation pin (COMP) should be connected to a capacitor to ground to prevent oscillations.
  • The ADP1763WACPZ-R7 can handle input voltages up to 15V, but it's recommended to operate within the recommended input voltage range of 2.7V to 5.5V for optimal performance and reliability.
  • The output voltage of the ADP1763WACPZ-R7 can be calculated using the following formula: VOUT = (R1/R2) * (VIN - VREF), where R1 and R2 are the resistors in the feedback network, VIN is the input voltage, and VREF is the internal reference voltage (1.2V).
  • The ADP1763WACPZ-R7 can deliver up to 3A of output current, but it's recommended to operate within the recommended output current range of 1A to 2A for optimal performance and reliability.
