ADP1765ACPZ-0.9-R7 - Analog Devices

Description: ► 5 A maximum output current ► Low input voltage supply range ► VIN = 1.10 V to 1.98 V, no external bias supply required ► Fixed output voltage range (VOUT_FIXED): 0.55 V to 1.5 V ► Adjustable output voltage range (VOUT_ADJ): 0.5 V to 1.5 V ► Ultralow noise: 2 µV rms, 100 Hz to 100 kHz ► Noise spectral density: 5 nV/√Hz at 10 kHz; 4 nV/√Hz at 100 kHz ► Low dropout voltage: 59 mV typical at 5 A load ► Operating supply current: 5 mA typical at no load ► ±1.5% fixed output voltage accuracy over line,

Download ADP1765ACPZ-0.9-R7 Model

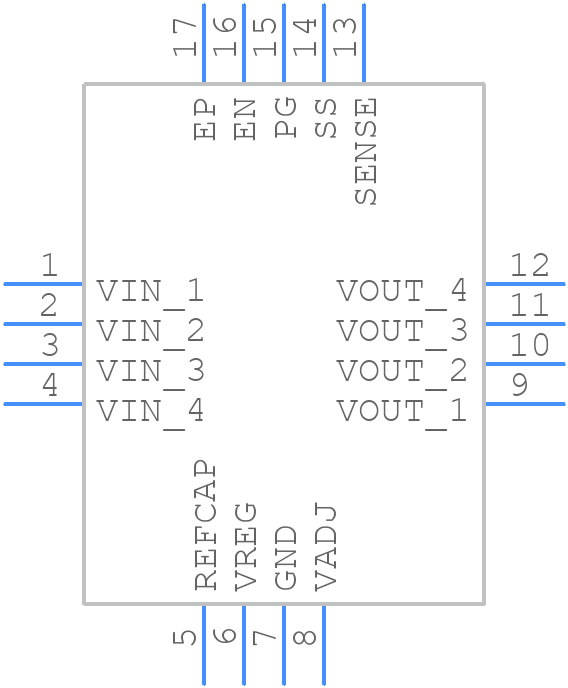

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADP1765ACPZ-0.9-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-48
click to zoom
3D Models
ADP1765ACPZ-0.9-R7 - Analog Devices  - 3D model - Quad Flat No-Lead - CP-16-48
click to zoom

ADP1765ACPZ-0.9-R7 Details

  • Manufacturer Part Number:

    ADP1765ACPZ-0.9-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-48

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-01-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.095 V

  • Dropout Voltage1-Nom:

    0.2 V

  • Input Voltage Absolute-Max:

    2.16 V

  • Input Voltage-Max:

    1.98 V

  • Input Voltage-Min:

    1.1 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Load Regulation-Max:

    0.01323%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    5 A

  • Output Voltage1-Max:

    0.9067 V

  • Output Voltage1-Min:

    0.8932 V

  • Output Voltage1-Nom:

    0.9 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    0.8%

  • Width:

    3 mm

ADP1765ACPZ-0.9-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP1765 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the power supply traces away from the analog signals.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended compensation network configuration, use a sufficient output capacitor, and ensure that the input voltage is within the specified range. Additionally, the device should be operated within the recommended temperature range, and the PCB layout should be designed to minimize parasitic inductance and capacitance.
  • The maximum output current of the ADP1765 is 3A. However, the device can deliver higher currents for short durations, but this may affect its reliability and lifespan. It's recommended to operate the device within the specified maximum output current to ensure reliable operation.
  • The selection of the output capacitor depends on the output voltage, output current, and the desired level of output ripple. A general rule of thumb is to use a capacitor with a value between 10uF to 47uF, and a voltage rating that is at least 1.5 times the output voltage. The capacitor should also have a low ESR (Equivalent Series Resistance) to minimize output ripple and ensure stability.
  • The ADP1765 is specified to operate up to 125°C, but its performance and reliability may be affected at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation. Additionally, the device should be mounted on a heat sink to dissipate heat effectively.
