ADP1765ACPZ0.95-R7 - Analog Devices

Description: LDO Voltage Regulators COM/I&I require low noise LDO w/ 5A rati

Download ADP1765ACPZ0.95-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

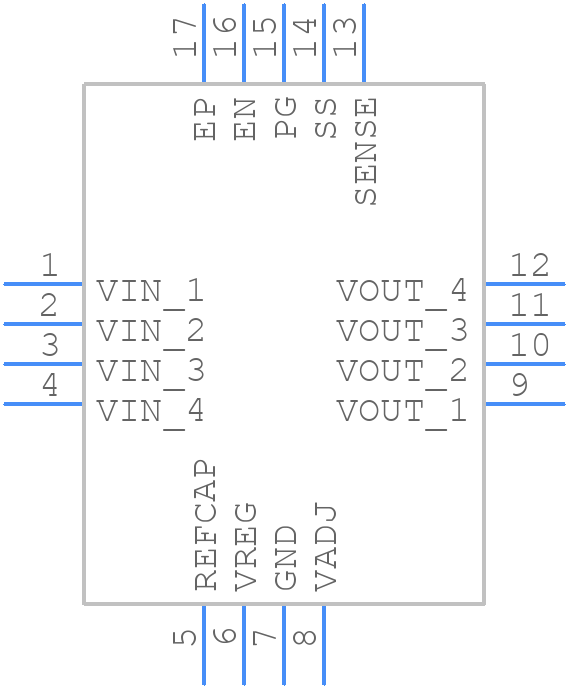

ADP1765ACPZ0.95-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1765ACPZ0.95-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-48)-
click to zoom
3D Models
ADP1765ACPZ0.95-R7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-48)-
click to zoom

ADP1765ACPZ0.95-R7 Details

  • Manufacturer Part Number:

    ADP1765ACPZ0.95-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-48

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-01-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.095 V

  • Dropout Voltage1-Nom:

    0.15 V

  • Input Voltage Absolute-Max:

    2.16 V

  • Input Voltage-Max:

    1.98 V

  • Input Voltage-Min:

    1.1 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Load Regulation-Max:

    0.013965%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    5 A

  • Output Voltage1-Max:

    0.9571 V

  • Output Voltage1-Min:

    0.9428 V

  • Output Voltage1-Nom:

    0.95 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    0.8%

  • Width:

    3 mm

ADP1765ACPZ0.95-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP1765 should minimize noise and ensure good thermal dissipation. Keep the input and output capacitors close to the device, and use a solid ground plane to reduce noise. Also, ensure that the thermal pad is connected to a thermal relief pattern to dissipate heat efficiently.
  • The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. A general rule of thumb is to choose a capacitor with a capacitance value of at least 10uF and a voltage rating of at least 1.5 times the output voltage. Additionally, consider the ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) of the capacitor to ensure it can handle the output current and frequency.
  • The maximum ambient temperature for the ADP1765 is 85°C. However, the device can operate up to 125°C junction temperature. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
  • Yes, the ADP1765 is suitable for high-reliability and automotive applications. It meets the AEC-Q100 automotive qualification standard and is designed to operate in harsh environments. However, it's essential to follow proper design and testing procedures to ensure the device meets the specific requirements of your application.
  • To troubleshoot issues with the ADP1765, start by checking the input voltage, output voltage, and output current. Verify that the device is properly soldered and that the PCB layout is correct. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet and application notes for guidance on troubleshooting specific issues.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADP1765ACPZ0.95-R7 Overview

Use the download button to access the ADP1765ACPZ0.95-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP17, or try a keyword search, such as Linear Regulator ICs
