ADP1828YRQZ-R7 - Analog Devices

Description: Analog Devices ADP1828YRQZ-R7, DC-DC Converter 600 kHz 20-Pin, QSOP

Download ADP1828YRQZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

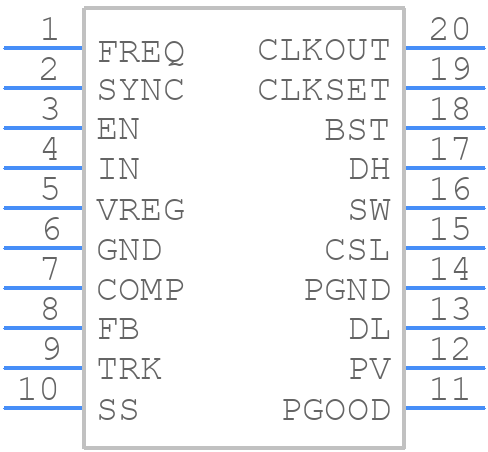

ADP1828YRQZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1828YRQZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RQ-20 (QSOP)
click to zoom
3D Models
ADP1828YRQZ-R7 - Analog Devices - 3D model - Small Outline Packages - RQ-20 (QSOP)
click to zoom

ADP1828YRQZ-R7 Details

  • Manufacturer Part Number:

    ADP1828YRQZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    QSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RQ-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.6 TO 17V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    5.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    8.66 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    17 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    720 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.64 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.91 mm

ADP1828YRQZ-R7 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the ADP1828 evaluation board documentation, which includes guidelines for component placement, thermal management, and routing. It's essential to follow these guidelines to minimize noise, ensure proper thermal dissipation, and achieve optimal performance.
  • The selection of input and output capacitors depends on the specific application requirements, such as output voltage, current, and ripple. Analog Devices recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The datasheet provides more detailed guidelines for capacitor selection.
  • The ADP1828YRQZ-R7 is rated for operation from -40°C to +125°C ambient temperature range. However, the device's performance and reliability may be affected at extreme temperatures. It's essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
  • Yes, the ADP1828YRQZ-R7 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured using a robust process that ensures high reliability and low defect rates.
  • Analog Devices provides a troubleshooting guide in the ADP1828 datasheet and application notes. Common issues can often be resolved by checking the input voltage, output load, and PCB layout. Additionally, Analog Devices' support team can provide assistance with troubleshooting and debugging.
