ADP1873ARMZ-0.3-R7 - Analog Devices

Description: Power input voltage as low as 2.75 V to 20 V Bias supply voltage range: 2.75 V to 5.5 V Minimum output voltage: 0.6 V 0.6 V reference voltage with ±1.0% accuracy Supports all N-channel MOSFET power stages Available in 300 kHz, 600 KHz, and 1.0 MHz options No current-sense resistor required Power saving mode (PSM) for light loads (ADP1873 only) Resistor-programmable current-sense gain Thermal overload protection Short-circuit protection Precision enable input Integrated bootstrap diode for high-s

Download ADP1873ARMZ-0.3-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

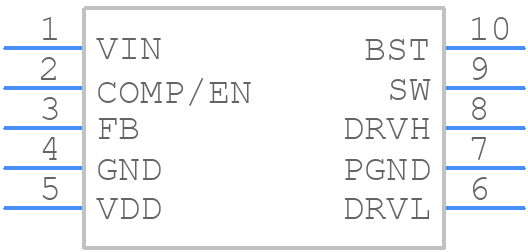

ADP1873ARMZ-0.3-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1873ARMZ-0.3-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RM-10)
click to zoom
3D Models
ADP1873ARMZ-0.3-R7 - Analog Devices - 3D model - Small Outline Packages - (RM-10)
click to zoom

ADP1873ARMZ-0.3-R7 Details

  • Manufacturer Part Number:

    ADP1873ARMZ-0.3-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    MINIMUM OUTPUT VOLTAGE 0.6V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    2.75 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Min:

    0.6 V

  • Output Voltage-Nom:

    2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    300 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADP1873ARMZ-0.3-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP1873 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the power and ground traces separate.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device should be operated within its recommended operating conditions, and the input voltage should be well-regulated.
  • The maximum output current of the ADP1873 is 3A. However, the device can deliver higher currents for short durations. It's recommended to check the device's thermal performance and ensure that it is operated within its recommended operating conditions to avoid overheating.
  • The ADP1873 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to check the device's thermal performance and ensure that it is operated within its recommended operating conditions to avoid overheating.
  • To troubleshoot issues with the ADP1873, start by checking the input and output voltages, and ensure that they are within the recommended operating range. Check the device's thermal performance and ensure that it is not overheating. Also, check the PCB layout and ensure that it follows the recommended guidelines. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' support team for further assistance.
