ADP2119ACPZ-1.0-R7 - Analog Devices

Description: Continuous output current ADP2119: 2 A ADP2120: 1.25 A 145 mΩ and 70 mΩ integrated MOSFETs Input voltage range from 2.3 V to 5.5 V Output voltage from 0.6 V to VIN ±1.5% output accuracy 1.2 MHz fixed switching frequency Synchronizable between 1 MHz and 2 MHz Selectable PWM or PFM mode operation Current mode architecture Precision threshold enable input Power-good flag Voltage tracking Integrated soft start Internal compensation Startup with precharged output UVLO, OVP, OCP, and thermal shut

Download ADP2119ACPZ-1.0-R7 Model

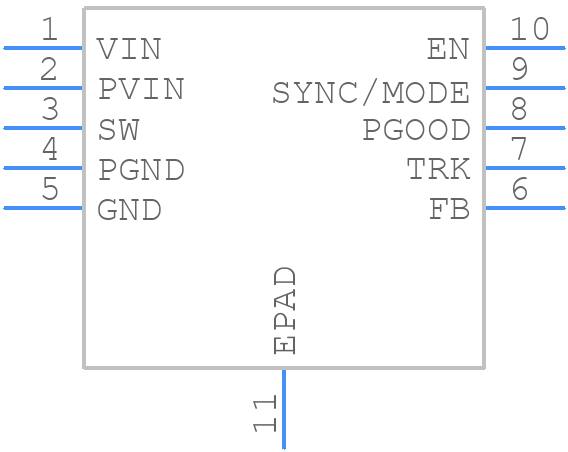

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADP2119ACPZ-1.0-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - (CP-10-9)
click to zoom
3D Models
ADP2119ACPZ-1.0-R7 - Analog Devices  - 3D model - Small Outline No-lead - (CP-10-9)
click to zoom

ADP2119ACPZ-1.0-R7 Details

  • Manufacturer Part Number:

    ADP2119ACPZ-1.0-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:45.68

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.5 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.6 V

  • Output Voltage-Nom:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1380 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADP2119ACPZ-1.0-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP2119 should prioritize noise reduction and thermal management. Keep the input and output capacitors close to the device, use a solid ground plane, and ensure good thermal conduction to the PCB. Analog Devices provides a recommended layout in the datasheet and application notes.
  • Choose input and output capacitors with low ESR, high ripple current rating, and suitable voltage ratings. X5R or X7R ceramic capacitors are recommended. The datasheet provides guidance on capacitor selection, and Analog Devices' capacitor selection tool can also be used.
  • The ADP2119 is rated for operation up to 125°C ambient temperature. However, derating may be necessary for high-power applications or high-temperature environments. Consult the datasheet and thermal management guidelines for more information.
  • Yes, the ADP2119 is qualified for automotive and high-reliability applications. It meets AEC-Q100 standards and is available in a variety of grades, including automotive and industrial grades. Consult the datasheet and Analog Devices' quality and reliability documentation for more information.
  • Common issues with the ADP2119 can often be resolved by checking the PCB layout, input and output capacitor selection, and component quality. Consult the datasheet, application notes, and Analog Devices' technical support resources for troubleshooting guidance.
