ADP2119ACPZ-1.8-R7 - Analog Devices

Description: 2A, 1.2MHz Synchronous Step-Down DC-to-DC Regulator

Download ADP2119ACPZ-1.8-R7 Model

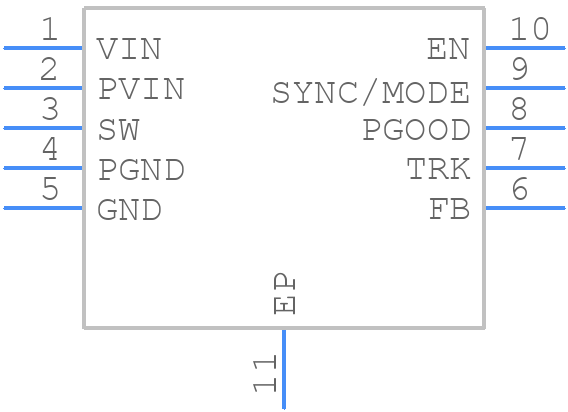

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADP2119ACPZ-1.8-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - ADP2119aACPZ-1.8-R7a
click to zoom
3D Models
ADP2119ACPZ-1.8-R7 - Analog Devices  - 3D model - Small Outline No-lead - ADP2119aACPZ-1.8-R7a
click to zoom

ADP2119ACPZ-1.8-R7 Details

  • Manufacturer Part Number:

    ADP2119ACPZ-1.8-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:45.682

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.5 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.6 V

  • Output Voltage-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1380 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADP2119ACPZ-1.8-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP2119 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR (Equivalent Series Resistance) and is placed close to the device. Additionally, a minimum of 10uF output capacitance is recommended for stability.
  • The ADP2119 has an absolute maximum input voltage rating of 6V. However, it is recommended to operate the device within the specified input voltage range of 2.7V to 5.5V for optimal performance and reliability.
  • The ADP2119 has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the output current and input voltage at high temperatures to ensure reliable operation.
  • The output voltage of the ADP2119 can be calculated using the formula: VOUT = (R1/R2) * (VIN - VREF), where R1 and R2 are the resistors in the feedback network, VIN is the input voltage, and VREF is the internal reference voltage (1.8V for the ADP2119ACPZ-1.8-R7).
