ADP2119ACPZ-3.3-R7 - Analog Devices

Description: 2A, 1.2MHz Synchronous Step-Down DC-to-DC Regulator

Download ADP2119ACPZ-3.3-R7 Model

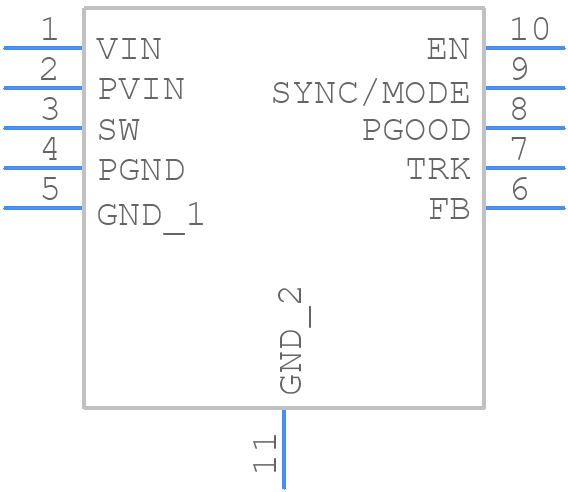

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADP2119ACPZ-3.3-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - LFCSP:LEADFRM CHIP SCALE_2023-3
click to zoom
3D Models
ADP2119ACPZ-3.3-R7 - Analog Devices  - 3D model - Small Outline No-lead - LFCSP:LEADFRM CHIP SCALE_2023-3
click to zoom

ADP2119ACPZ-3.3-R7 Details

  • Manufacturer Part Number:

    ADP2119ACPZ-3.3-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:45.689

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.5 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.6 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1380 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADP2119ACPZ-3.3-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP2119 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines, and to add a compensation capacitor (CFF) between the COMP and GND pins. Additionally, ensure that the output capacitor (CO) is properly sized and placed close to the device.
  • The ADP2119 can handle input voltages up to 15V, but it's recommended to operate within the specified input voltage range (2.7V to 5.5V) for optimal performance and reliability.
  • The ADP2119 is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's essential to consider the device's thermal characteristics and ensure proper heat dissipation in high-temperature applications.
  • To troubleshoot issues with the ADP2119, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component values, and ensure that the device is properly soldered and connected. Use an oscilloscope to analyze the output voltage and current waveforms, and consult the datasheet and application notes for guidance.
