Please enter a minimum 3 letters or numbers
Technical Content
Part Image

ADP2120ACPZ-1.8-R7 - Analog Devices

Description: Synchronous, Step-Down DC-to-DC Regulators

Download ADP2120ACPZ-1.8-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

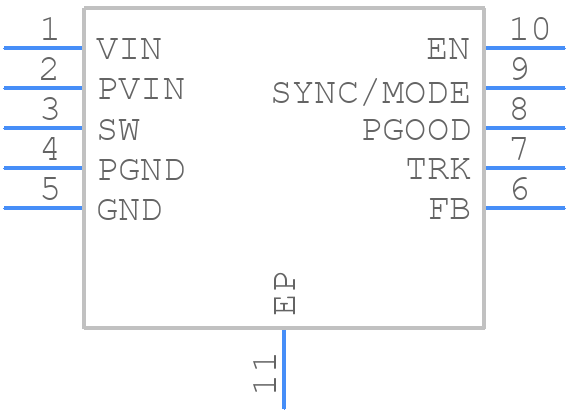

ADP2120ACPZ-1.8-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP2120ACPZ-1.8-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-10-9 (LFCSP)
click to zoom
3D Models
ADP2120ACPZ-1.8-R7 - Analog Devices - 3D model - Small Outline No-lead - CP-10-9 (LFCSP)
click to zoom

ADP2120ACPZ-1.8-R7 Details

  • Manufacturer Part Number:

    ADP2120ACPZ-1.8-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:45.694

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.4 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.6 V

  • Output Voltage-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1380 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADP2120ACPZ-1.8-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP2120 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low equivalent series resistance (ESR) and is placed close to the device. A minimum output capacitance of 10uF is recommended.
  • The maximum input voltage for the ADP2120 is 5.5V. Exceeding this voltage can cause damage to the device. It's recommended to add input voltage protection, such as a voltage clamp or a transient voltage suppressor, to prevent overvoltage conditions.
  • The ADP2120 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and voltage according to the temperature derating curve provided in the datasheet.
  • The output voltage ripple of the ADP2120 can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency. A lower output voltage ripple can be achieved by using a larger output capacitor and a lower ESL.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADP2120ACPZ-1.8-R7 Overview

Use the download button to access the ADP2120ACPZ-1.8-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP21, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to ADP2120ACPZ-1.8-R7

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑
