ADP2138ACBZ-3.3-R7 - Analog Devices

Description: Compact, 800 mA, 3 MHz, Step-Down DC-to-DC Converter

Download ADP2138ACBZ-3.3-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

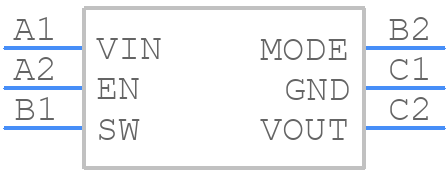

ADP2138ACBZ-3.3-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP2138ACBZ-3.3-R7 - Analog Devices PCB footprint - BGA - BGA - (CB-6-12)
click to zoom
3D Models
ADP2138ACBZ-3.3-R7 - Analog Devices - 3D model - BGA - (CB-6-12)
click to zoom

ADP2138ACBZ-3.3-R7 Details

  • Manufacturer Part Number:

    ADP2138ACBZ-3.3-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    WLCSP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    CB-6-12

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PBGA-B6

  • JESD-609 Code:

    e1

  • Length:

    1.505 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.65 A

  • Output Voltage-Max:

    3.366 V

  • Output Voltage-Min:

    3.234 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA6,2X3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.64 mm

  • Supply Current-Max (Isup):

    0.03 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3400 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.03 mm

ADP2138ACBZ-3.3-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP2138 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low ESR (Equivalent Series Resistance) and is properly decoupled from the input capacitor. A minimum output capacitance of 10uF is recommended.
  • The maximum input voltage that can be applied to the ADP2138 is 6V. Exceeding this voltage can cause damage to the device. It's recommended to add input voltage protection, such as a voltage clamp or a TVS diode, to prevent overvoltage conditions.
  • The ADP2138 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and ensure proper thermal management, such as using a heat sink or a thermally conductive PCB material, to maintain a safe operating temperature.
  • To troubleshoot issues with the ADP2138, start by verifying the input voltage, output voltage, and output current. Check the PCB layout and component values to ensure they meet the recommended specifications. Use an oscilloscope to measure the output voltage and current waveforms, and look for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
